Fitment Information

• Chevy Sprint Base 1.0L L3 (1987, 1988)

• Chevy Sprint ER 1.0L L3 (1987, 1988)

• Chevy Sprint Metro 1.0L L3 (1987, 1988)

• Chevy Sprint Turbo 1.0L L3 (1987, 1988)


Specs & Features

• Torque Capacity (ft/lbs.): 225 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 95%

• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 7.5

• Clutch Disc Diameter (Millimeters): 190

• Input Shaft Diameter (inches): 0.75

• Pressure Plate Type: Xtreme
• 12 Month Warranty

Product Description

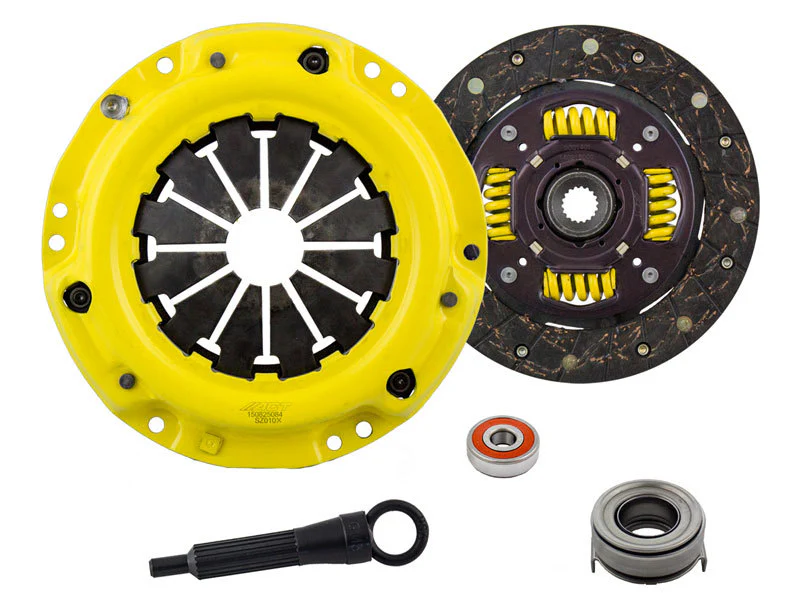

ACT's Xtreme Duty/Modified Street kit showcases an Xtreme pressure plate tailored for the most demanding drivers. Utilizing an exclusive diaphragm design, ACT Xtreme pressure plates enhance clamp load, diminish deflection, and extend clutch life. Each diaphragm undergoes a rigorous four-stage heat-treating process, ensuring unmatched performance. Precision cover stampings guarantee rigidity and consistency. ACT's Modified spring-centered street discs boast premium organic friction material with high copper content for superior heat transfer, along with steel-backed lining for enhanced burst strength and durability. These discs feature reduced marcel for swifter shift action to complement ACT pressure plates. With heavy-duty torsional dampening springs that surpass standard springs in strength and size, ACT delivers the ideal spring rates for each application. The modified street discs facilitate quicker shifting and engagement while maintaining quiet operation, elevating both strength and reliability.

ACT Xtreme Duty /Race Sprung Kit Features:

• Feel: Experience a pedal with moderate to heavy effort, delivering aggressive engagement and increased gear rattle.

• Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design, although the rigid design may lead to increased spline wear over time.

• Quality: Meticulously engineered, precisely assembled, and accurately balanced, this product utilizes select ceramic friction materials for high heat tolerance and maximum performance.

• Recommended Use: This product is specifically recommended for race use only, ensuring optimal performance in high-performance driving scenarios.

• ACT Difference: Each unit undergoes 100% clamp load testing and dynamic computer balancing, guaranteeing smooth operation even at high RPMs.
