Fitment Information

• Ford Mustang Shelby GT500 5.4L V8 (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Note

• If vehicle is equipped with she shorter late CSC measuring 2-1/8 inches, the spacer included in the kit must be installed. Do no install the spacer if using the taller CSC.

Specs & Features

• Torque Capacity (ft/lbs.): 986 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 53%

• Disc Material: Organic

• Clutch Disc Diameter (Inches): 10.5

• Clutch Disc Diameter (Millimeters): 267

• Input Shaft Diameter (inches): 1
• Flywheel: Prolite
• SFI: 1.2

Product Description

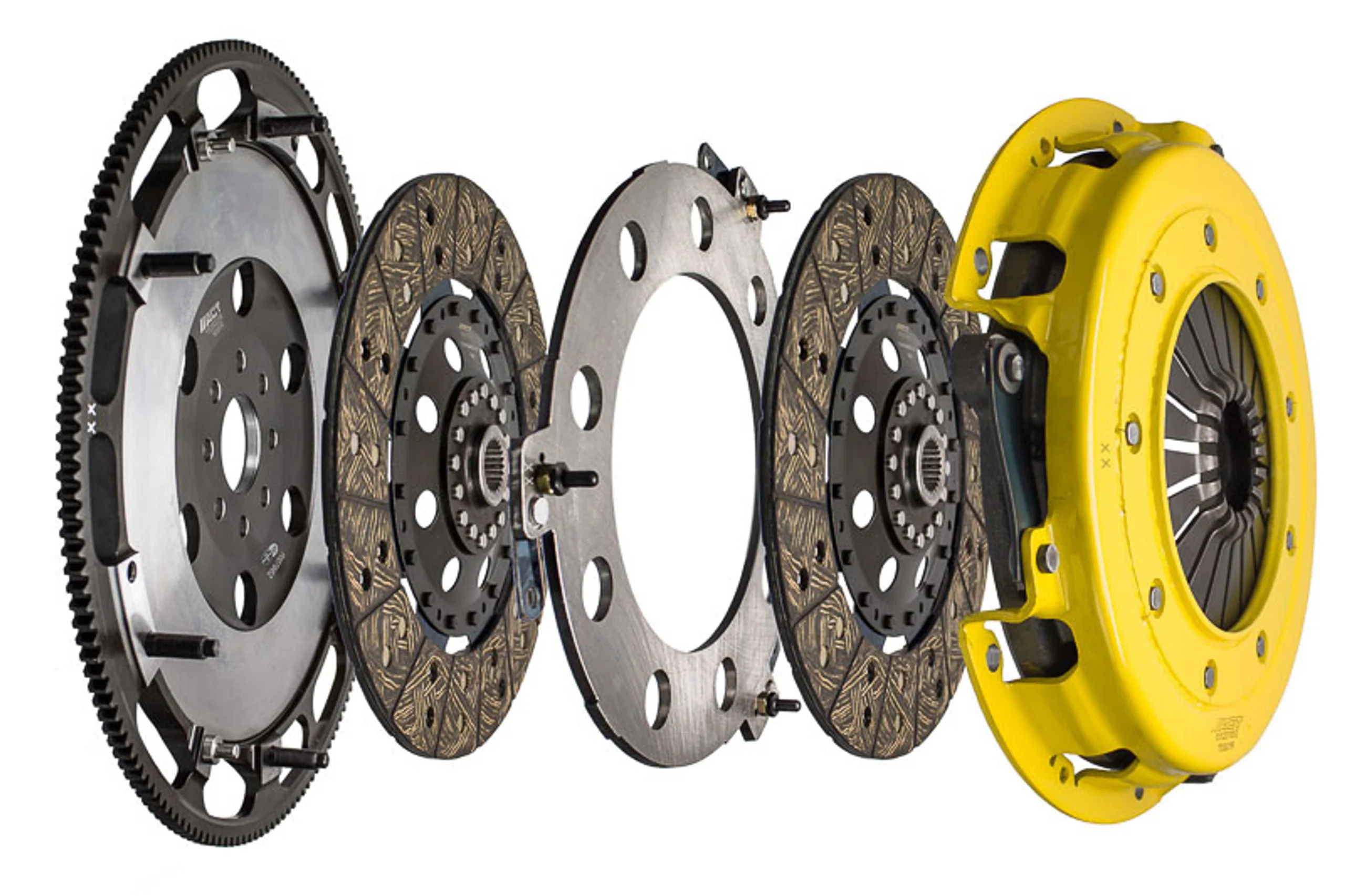

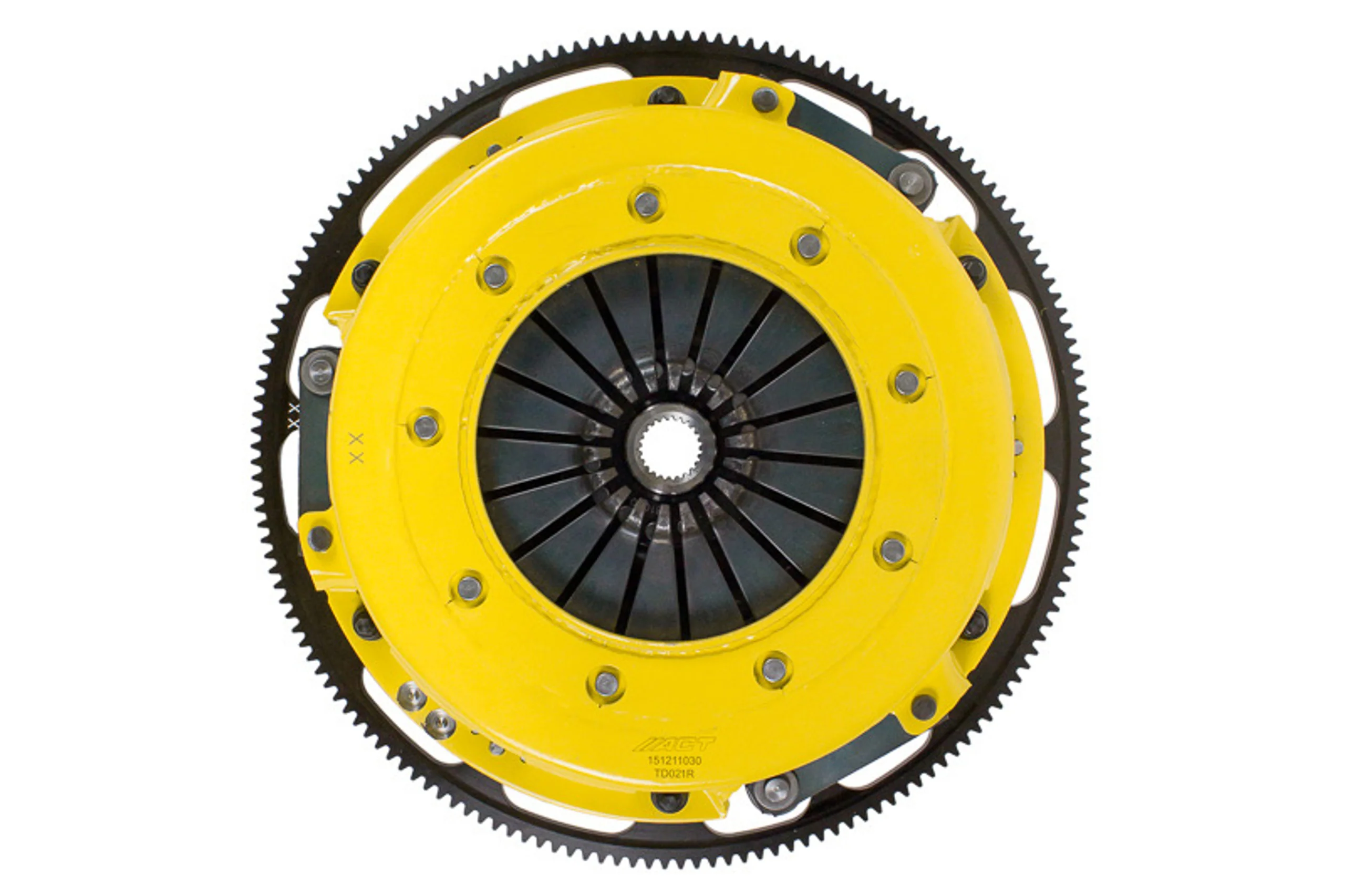

ACT's Twin Disc Xtreme Street Kit offers superior durability and performance with double the disc surfaces, enhancing wear resistance, heat capacity, and lifespan compared to single disc alternatives. Engineered with a unique Positive Lift Floater System, these kits ensure silent operation without rattling or wearing posts. ACT employs an exclusive four-stage heat-treating process on all diaphragms, ensuring longevity. Featuring adjustable disc wear and consistent disengagement, ACT's twin disc setup delivers reliability. Utilizing high-quality ceramic friction materials, the 6-pad rigid race discs are complemented by a chrome-moly hub, heat-treated for added strength. The lightweight, rigid design enables swift shifts and hassle-free maintenance. Each kit includes a CNC-machined, dynamically balanced flywheel for seamless installation and operation. Components comprise a pressure plate, two discs, a floater, flywheel, and alignment tool, with some kits including a pilot bearing and release bearing.

ACT Twin Disc Heavy Duty Street Kit Clutch Kit Features:

• Feel: Experience moderate to heavy pedal effort with quick shifts and aggressive engagement. Expect OE to moderate gear rattle for an authentic racing feel.

• Life: Enjoy extended disc surface life with double the wear capacity and enhanced heat capacity. ACT's exclusive diaphragm design further prolongs the lifespan of the clutch assembly.

• Quality: Carefully engineered, precisely assembled, and accurately balanced for optimal performance. Utilizes select ceramic friction materials for superior heat tolerance and maximum performance.

• Recommended Use: Designed for race use only, ensuring top-notch performance in high-performance racing scenarios.

• ACT Difference: Each unit undergoes 100% clamp load testing and dynamic computer balancing to ensure smooth operation and reliability, even at high RPMs.
