Fitment Information

• Mazda 929 Base 3.0L V6 (1988)


Specs & Features

• Torque Capacity (ft/lbs.): 625 (Torque Capacity is measured at the Engine/Crank)

• Torque Capacity Over OE: 156%
• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1

• Pressure Plate Type: Maxx Xtreme


Product Description

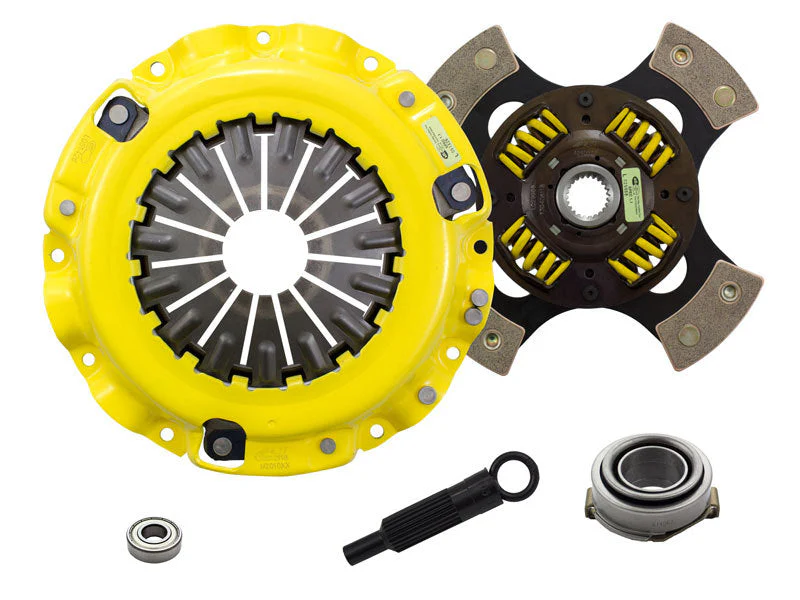

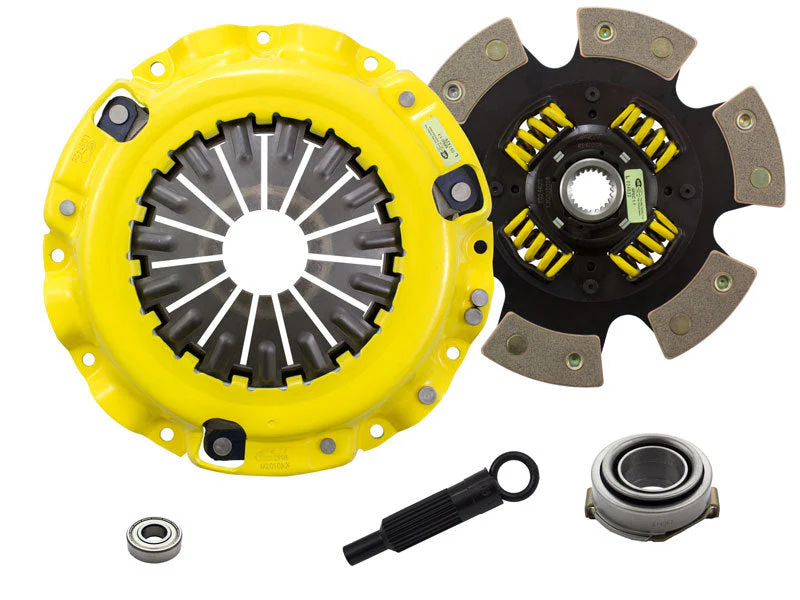

Experience the ultimate in performance with the Maxx Xtreme/Race Sprung kit from ACT. Engineered for passionate enthusiasts, this kit boasts a MaXX pressure plate designed to elevate your driving experience. ACT's MaXX pressure plates are crafted with an exclusive diaphragm design, boosting clamp load and extending clutch lifespan by minimizing deflection. Through a rigorous four-stage heat-treating process, ACT's diaphragms deliver unmatched durability. Precision cover stampings ensure consistent performance and rigidity. ACT's 4 or 5 pad spring-centered race disc, engineered with spring-center construction, effectively dampens torsional vibrations for quieter operation and enhanced resilience, even in challenging conditions. ACT's spring retainers feature wraparound spring windows and thicker retainer stampings, offering robust spring support, reducing stress concentrations, and enhancing reliability. While engagement may be more aggressive with the 4 or 5 pad spring-centered race disc, shifting becomes lightning-fast. This disc is particularly well-suited for smaller engines and disc sizes, delivering optimal performance every time. Elevate your driving experience with ACT's Maxx Xtreme/Race Sprung kit.

• Feel: Experience a heavy to very heavy pedal effort with aggressive engagement, leading to quicker shifts. Expect mild to moderate gear rattle during operation.
• Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design, ensuring durability and longevity.
• Quality: Meticulously engineered and precisely assembled, this product is accurately balanced for optimal performance. It utilizes select ceramic friction materials known for their high heat tolerance and maximum performance capabilities.
• Recommended Use: Ideal for high horsepower street or race applications, offering reliable performance under demanding conditions.
• ACT Difference: Each unit undergoes rigorous testing, including 100% clamp load testing and dynamic computer balancing, ensuring smooth operation and high RPM reliability.
