Fitment Information

• Subaru WRX 6 Man 2.0L H4 (2018, 2019, 2020)

• Subaru WRX Base 2.0L H4 (2015, 2016, 2017, 2018, 2019, 2020, 2021)

• Subaru WRX Base 2.4L H4 (2022, 2023)

• Subaru WRX Base 2.5L H4 (2013, 2014)

• Subaru WRX Limited 2.0L H4 (2015, 2016, 2017, 2018, 2019, 2020, 2021)

• Subaru WRX Limited 2.4L H4 (2022, 2023)
• Subaru WRX Limited 2.5L H4 (2006, 2007, 2010, 2011, 2012, 2013, 2014)

• Subaru WRX Premium 2.0L H4 (2015, 2016, 2017, 2018, 2019, 2020, 2021)

• Subaru WRX Premium 2.4L H4 (2022, 2023)

• Subaru WRX Premium 2.5L H4 (2009, 2010, 2011, 2012, 2013, 2014)

• Subaru WRX Sport 2.0L H4 (2017, 2018, 2019, 2020, 2021)

• Subaru WRX Sport 2.4L H4 (2022, 2023)

• Subaru WRX Sport-tech RS 2.0L H4 (2019, 2020)

• Subaru WRX Sport-tech 2.4L H4 (2017, 2018, 2019, 2020, 2021, 2022, 2023)

• Subaru WRX TR 2.5L H4 (2006, 2007)

• Subaru WRX 2.5L H4 (2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Note

• Conversion Kit. Replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components. Pressure plate bolts included (M8-1.25 x 16mm).

Specs & Features

• Torque Capacity (ft/lbs.): 681 - Torque Capacity is measured at the Engine/Crank

• Torque Capacity Over OE: 111%

• Disc Material: Ceramic

• Clutch Disc Diameter (Inches): 9.4

• Clutch Disc Diameter (Millimeters): 240

• Input Shaft Diameter (inches): 1

• Pressure Plate Type: Xtreme
• Flywheel Type: Streetlite
• 12 Month Warranty

Product Description

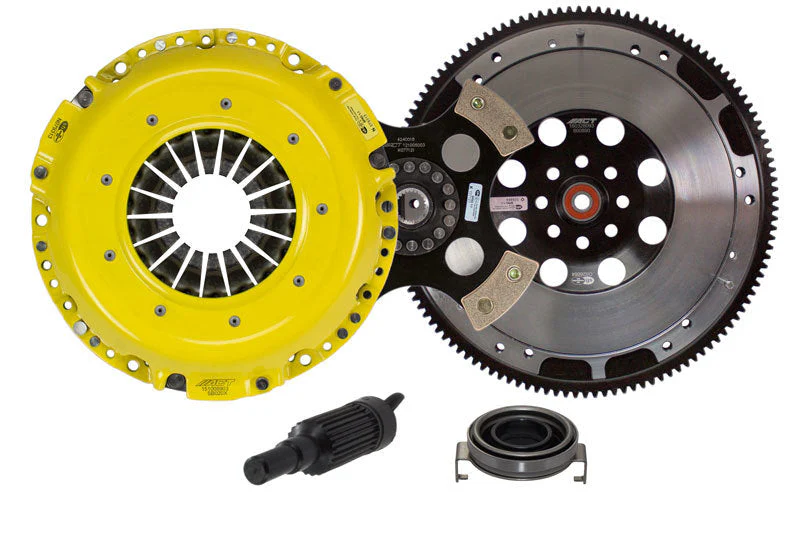

ACT's Xtreme Duty/Race Rigid kit boasts an Xtreme pressure plate tailored for demanding drivers. Utilizing an exclusive diaphragm design, it enhances clamp load, diminishes deflection, and extends clutch life. Each diaphragm undergoes a meticulous four-stage heat-treating process for superior performance. Precision cover stampings ensure rigidity and consistency. The 4-pad rigid race discs, crafted with top-notch ceramic friction materials, feature a chrome-moly hub treated for durability. Its lightweight, sturdy construction enables swift shifts and dependable operation. While engagement may feel harsher, the 4-pad rigid race disc facilitates faster shifting, particularly ideal for smaller engines with compact disc sizes.

ACT Xtreme Duty /Race Rigid Clutch Kit Features:

• Feel: Experience a pedal with moderate to heavy effort, delivering aggressive engagement and increased gear rattle.

• Life: Enjoy moderate friction life, extended by ACT's exclusive diaphragm design, although the rigid design may lead to increased spline wear over time.

• Quality: Meticulously engineered, precisely assembled, and accurately balanced, this product utilizes select ceramic friction materials for high heat tolerance and maximum performance.

• Recommended Use: This product is specifically recommended for race use only, ensuring optimal performance in high-performance driving scenarios.

• ACT Difference: Each unit undergoes 100% clamp load testing and dynamic computer balancing, guaranteeing smooth operation even at high RPMs.
