All ANZO lights on Redline360 are sold as a pair. Each order comes with the driver side and passenger side.

Fitment Information

• Toyota Tacoma 3rd Gen AN120/AN130, all trims, Access Cab and Double Cab (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)

Fitment Note: Fits all third-generation Tacoma trims including SR, SR5, TRD Sport, TRD Off-Road, TRD Pro, Limited, Trail, and Trail Special Edition. Fits both Access Cab and Double Cab body styles across the full 2016-2023 production run.

Specs & Features

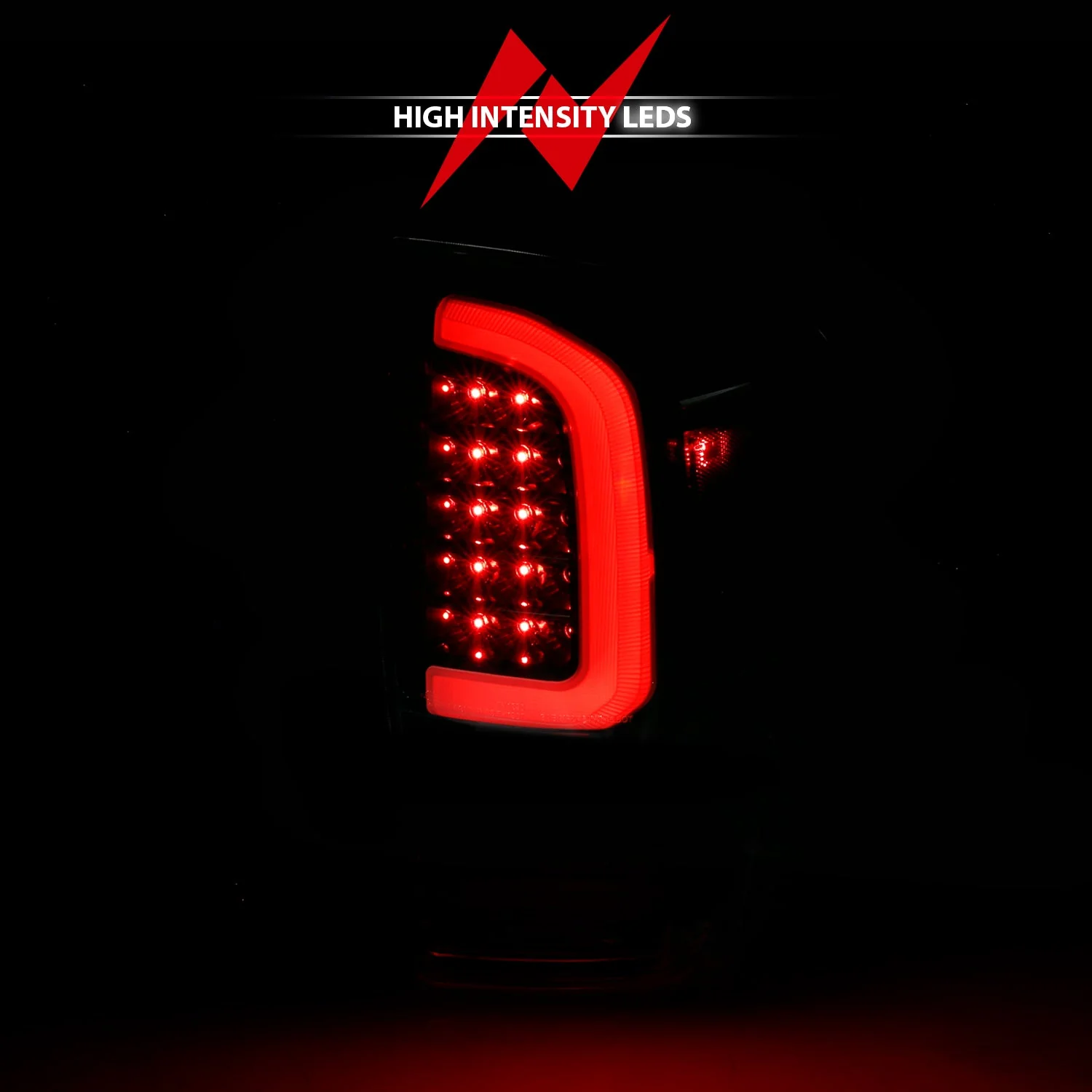

• Light Source: FULL LED

• Light Color: Red / White

• Feature: LED, LED Bar, LED Turn Signal, LED Brake, LED Parking, LED Reverse, and Sequential

• Bulb Type: LED
• Housing Color: Black Housing
• Full LED throughout with no external bulbs required for any function.

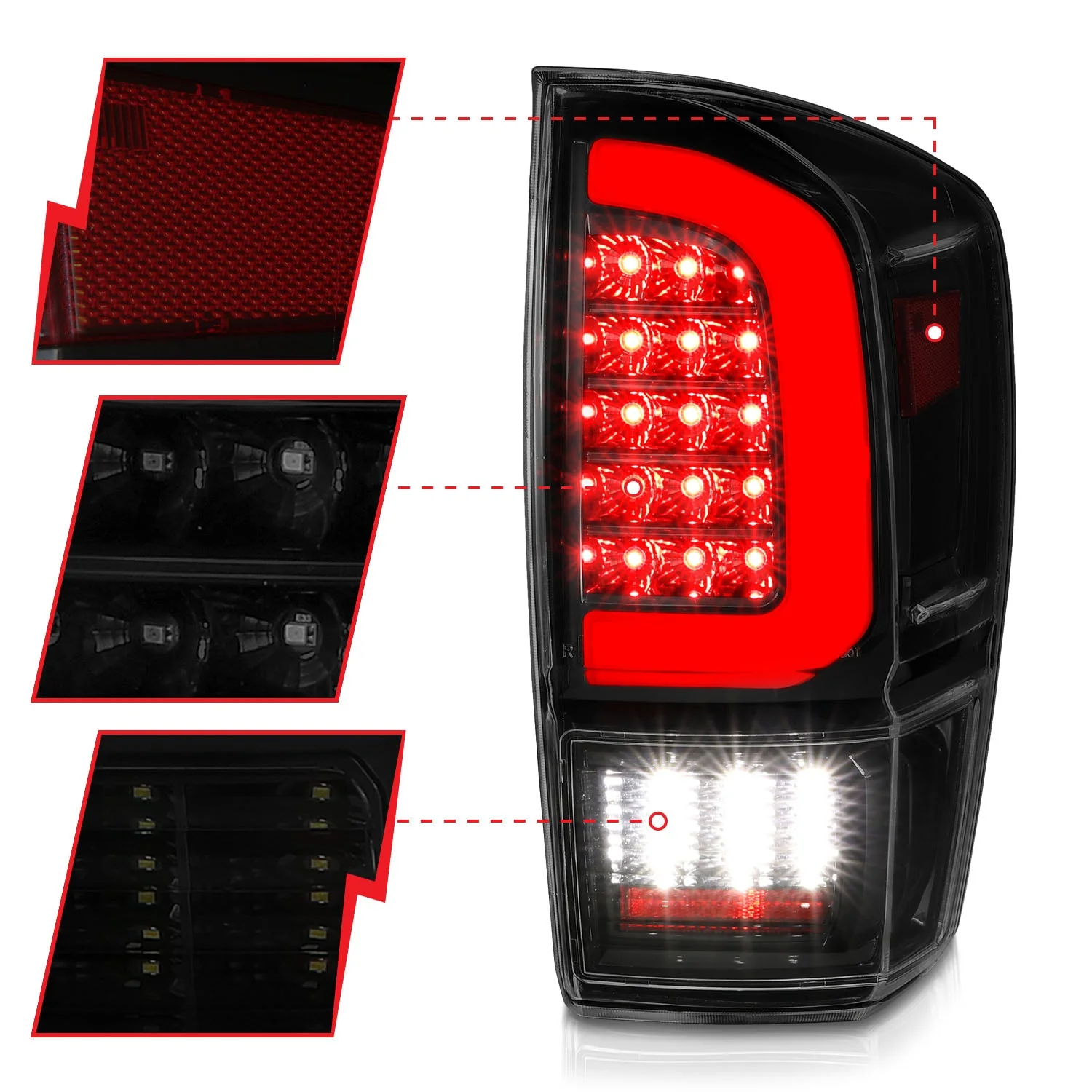

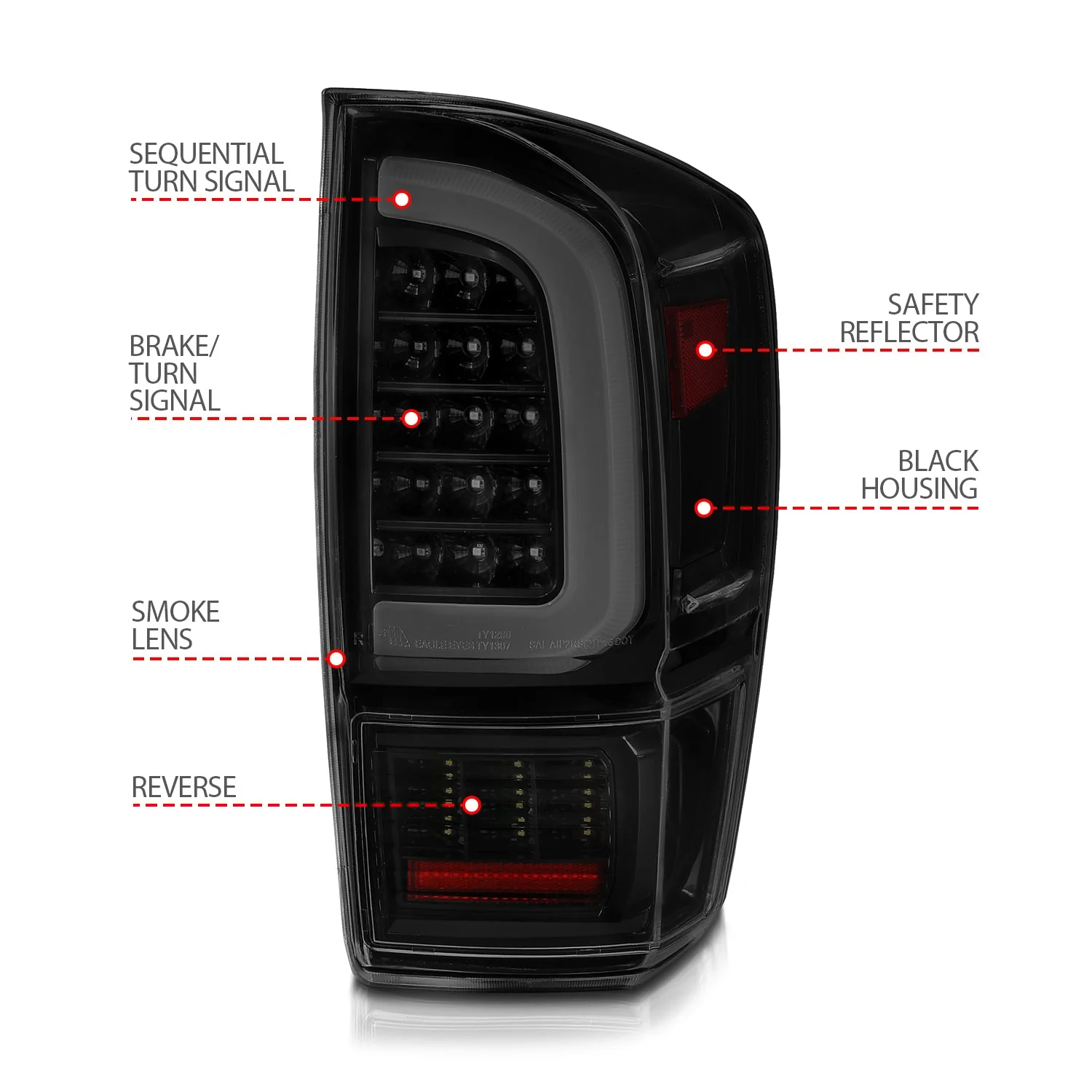

• The C-Bar style LED bar runs horizontally across each housing and functions as a brake, running, and reverse light.
• The sequential turn signal sweeps from inner to outer when the turn signal is activated.
• Two lens options are available: clear lens and smoke lens, both with black housing.

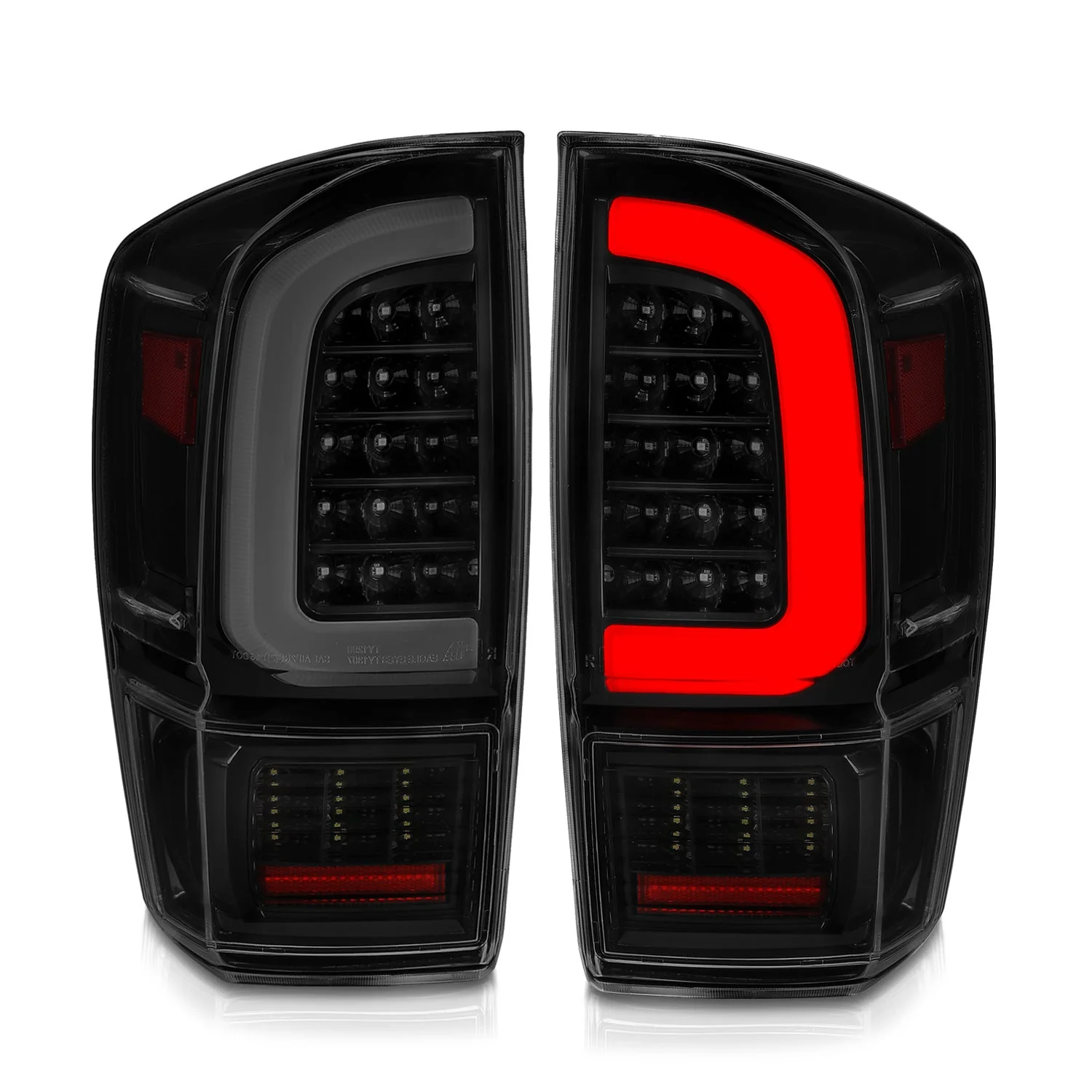

• Sold as a pair covering the driver and passenger sides.
• OEM bulbs are not needed.

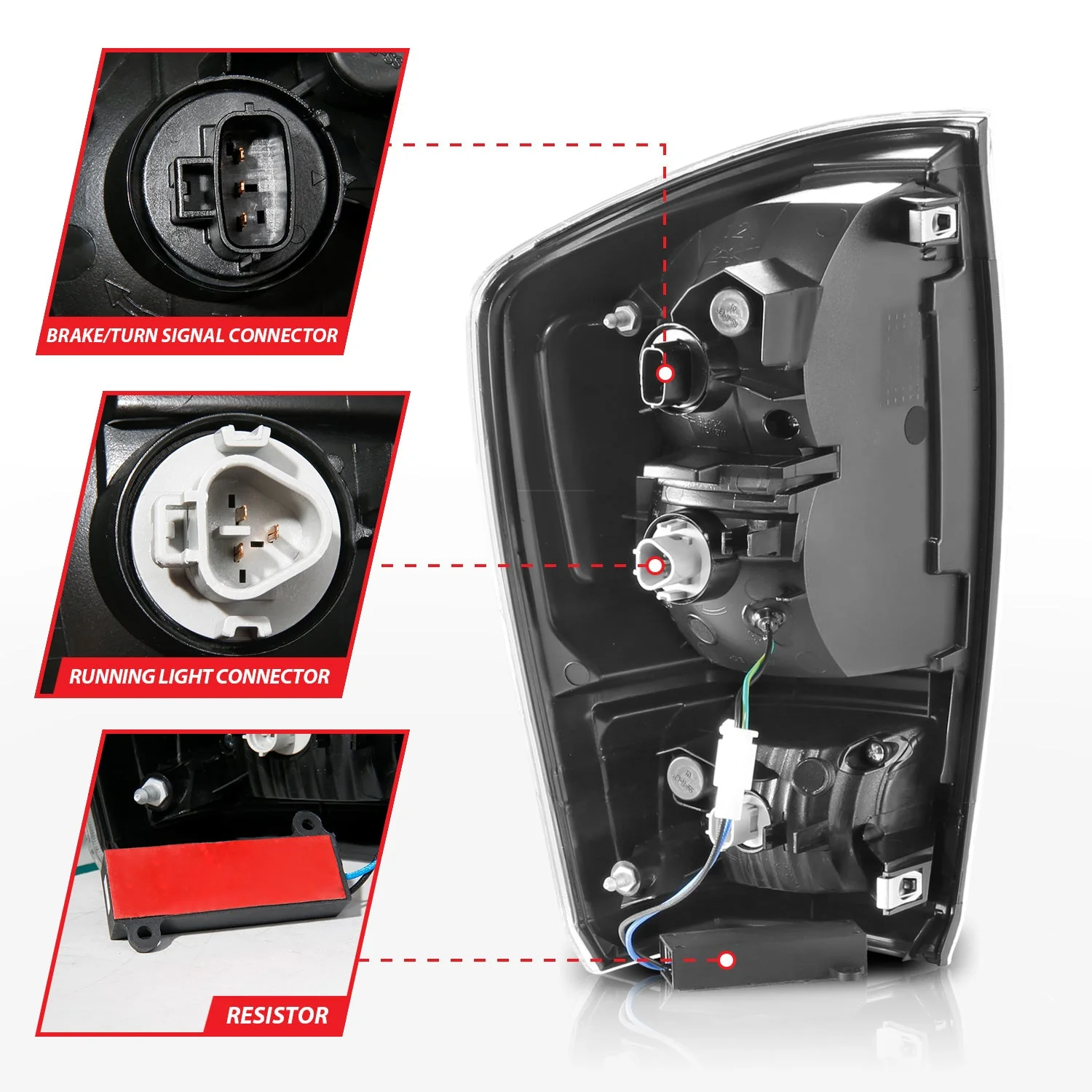

• Direct plug-and-play installation at OEM mounting points.
• SAE and DOT compliant to FMVSS No. 108. ISO 9002 and QS 9000 certified.
• TUV certified.
• Tested in a thermo-hygrometer chamber and rain-resistance tester.

Frequently Asked Questions

• Will these fit my TRD Pro or Limited?
  Yes. All 3rd gen Tacoma trims are confirmed including TRD Pro, TRD Off-Road, TRD Sport, SR5, SR, Limited, and Trail. Both Access Cab and Double Cab body styles are covered across the full 2016-2023 production run.
• What is the difference between the clear and smoke lens?
  Both use the same black housing and the same full LED setup. The clear lens shows the red LED elements through a transparent lens, giving a brighter and more traditional look. The smoke lens adds a dark tint over the same internals for a more blacked-out appearance. The function and brightness of both versions are identical.
• Do I need to buy any bulbs to complete the installation?
  No. These are full LED units with no external bulbs needed for any function including brake, running, reverse, or sequential turn signal. Everything is built into the housing.
• Will installing these cause any warning lights on my dashboard?
  Most 2016-2023 Tacoma owners install these without any canbus issues. If a warning light does appear, an LED load resistor can be added inline to resolve it. Contact us if you experience any issues after installation and we will help you troubleshoot.

Pairs well with:

• Anzo LED Projector Headlights Toyota Tacoma (2016-2023) C-Bar Style Sequential Signal Black Housing Matching Anzo headlights from the same manufacturer with the same C-Bar design and sequential signal to complete a full front-to-rear exterior lighting refresh on the 3rd gen Tacoma.

Product Description

In order to affirm resilience and durability, we rigorously test every AnzoUSA lighting product in a Thermo-Hygrometer (temperature and humidity chamber) and a Rain-Resistant Tester. In addition , we thoroughly expose all of our products to intense photometric testing to assure strict compliance with local, state, federal and international standards. Our products go through strict testing for durability, impact strength, as well as fresh/salt water, dust/dirt resistance.

In order to comply with safety regulations, all AnzoUSA products must pass all quality inspections. After all safety checks and quality assurance, products are manufactured using the most advanced technological and economical methods available. Single, double, and triple shot injection machines produce our semi-finished products. After undergoing vacuum electro-plating or spray plating processes, products are combined through hot press bonding, friction bonding, or an automatic assembly line spin coater.

AnzoUSA offers the best quality performance lighting products at an affordable cost. All AnzoUSA products are SAE and D.O.T. compliant to FMVSS No. 108; and manufactured in our state-of-the-art ISO 9002 and QS 9000 quality certified factory. Our lighting products are designed using CAD/CAM computerized equipment and these modern designs are then tested using 3-dimensional testing machine to insure precision and accuracy in the research, development and design of our molds.

Manufacturer Warranty

Every AnzoUSA product is backed by a ONE YEAR WARRANTY against manufacturer defects through ANZO. With over three decades of professional manufacturing experience and with ISO 9002 and German T.U.V quality certification, AnzoUSA has made itself a powerful competitor and leading brand in the world market. We strive to persistently meet ever-changing design specifications and needs; flexible, real-time service and preserving customer satisfaction. With our economical, pragmatic, and solid management, AnzoUSA looks forward to building a bright future with our valued customers!

Redline360 sells only genuine and authentic AnzoUSA products.

OEM Part Numbers

• 2016-2019 Driver (Left): Toyota 81560-04200 / Partslink TO2800190
• 2016-2019 Passenger (Right): Toyota 81550-04190 / Partslink TO2801190
• 2020-2023 Driver (Left): Toyota 81560-04210 / Partslink TO2800206
• 2020-2023 Passenger (Right): Toyota 81550-04210 / Partslink TO2801206

The 3rd gen Tacoma used different OEM tail light assemblies between 2016-2019 and 2020-2023 due to a mid-cycle refresh. All Anzo C-Bar variants on this listing fit both production periods using the same mounting points. Buyers can verify their specific OEM part number at parts.toyota.com with their VIN. Note that multiple OEM variants exist depending on trim level, and part numbers may vary between halogen and LED factory configurations.
