BD Diesel Xtrude Transmission Oil Cooler Ford F150 / F250 / F350 (94-97) 5/16" Line w/ Fan - 1030606-5/16

Product image 1
Product image 2
Product image 3
Product image 4

BD Diesel Xtrude Transmission Oil Cooler Ford F150 / F250 / F350 (94-97) 5/16" Line w/ Fan - 1030606-5/16

BD Diesel Xtrude Transmission Oil Cooler Ford F150 / F250 / F350 (94-97) 5/16" Line w/ Fan - 1030606-5/16

Fitment Information

  • Ford F150 4.2L / 4.6L / 5.4L (1997)
  • Ford F150 4.9L/ 5.0L/ 5.8L (1994, 1995, 1996)
  • Ford F250 4.6L / 5.4L (1997)
  • Ford F250 4.9L / 5.8L / 7.3L / 7.5L (1994, 1995, 1996)
  • Ford F350 5.8L / 7.3L / 7.5L (1994, 1995, 1996, 1997)

Note

  • Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

Specs & Features

  • 22% more cooling over other designs

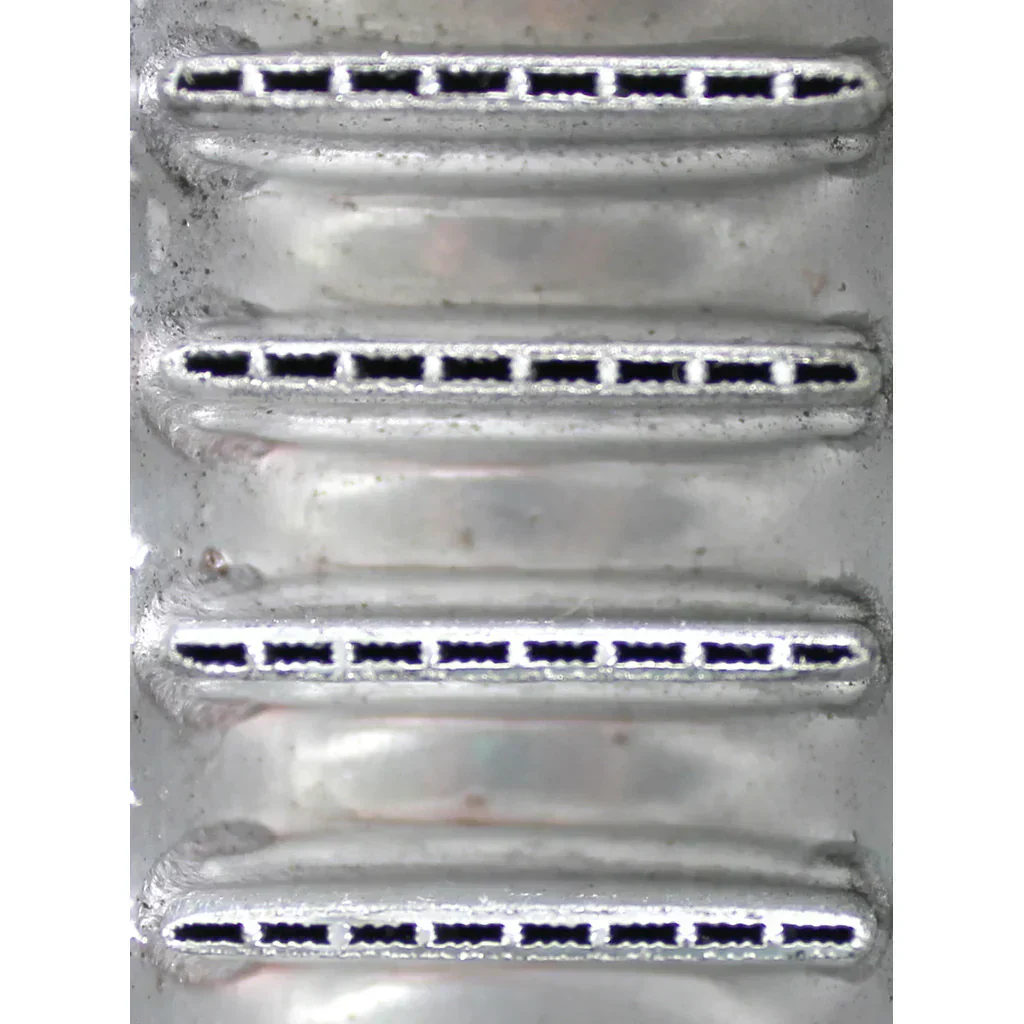

  • 200 Micro Extruded passages

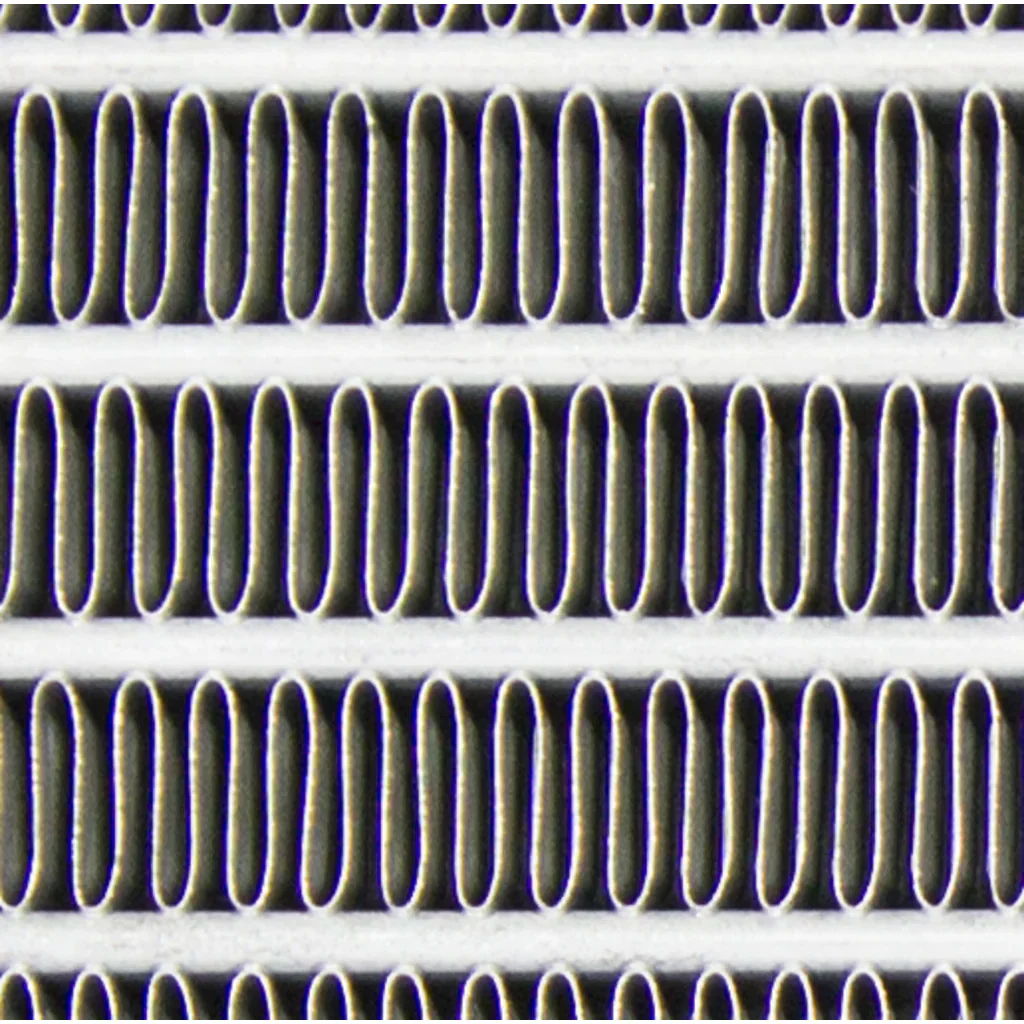

  • Large surface area to transfer heat for external air flow cooling
  • Turbulent oil flow design promotes a more complete cooling
  • Large 5/8-inch ports prevents inlet/outlet restriction
  • Furnace brazed rails have been tested to 300psi of pressure
  • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
  • 33,930 BTU/HR and in excess of 30,000 GVW!

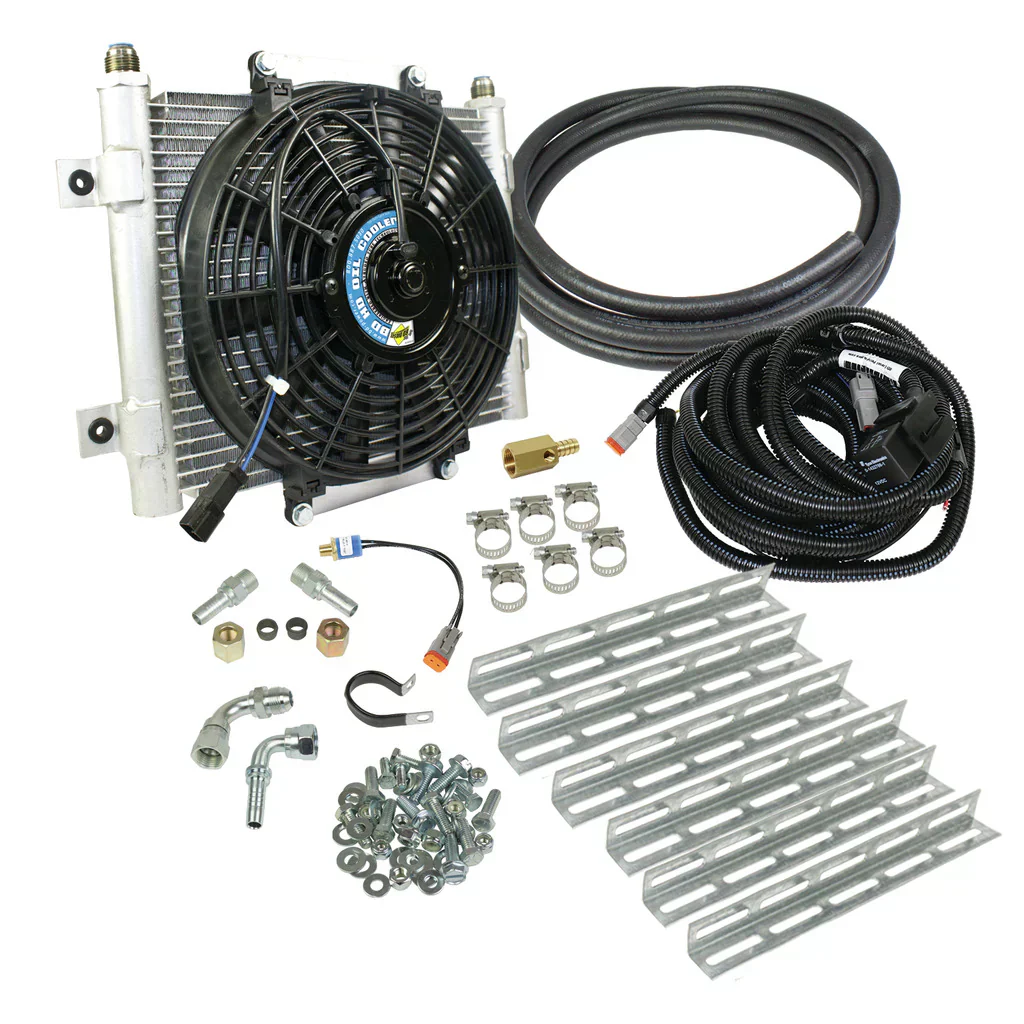

  • Kits complete with all fittings, clamps, hoses and hardware

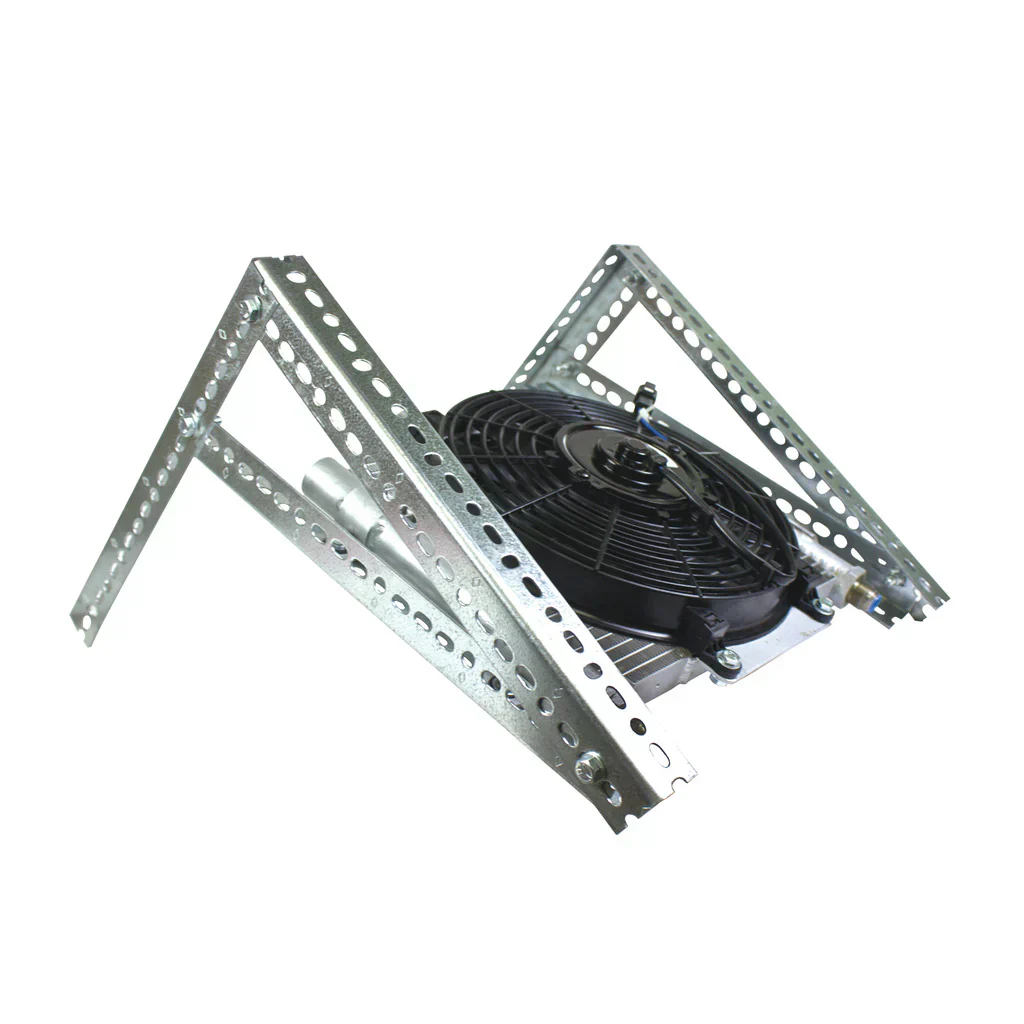

  • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
  • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
  • Chevy 1991-1999 4L80E - 5/16-inch Cooler Lines
  • Ford 1994-1997 E4OD - 5/16-inch Cooler Lines

Warranty

  • Parts:  24 months  or 24, 000 Miles

    Product Description

    BD Diesel's Xtruded Transmission Oil Cooler offers 22% more cooling than other designs. Its 200 micro-extruded passages provide a vast surface area for effective heat transfer, while turbulent oil flow ensures complete cooling. The cooler's large 5/8-inch ports prevent inlet/outlet restriction, and furnace brazed rails withstand up to 300psi. An 80-watt, 10-inch, 800 CFM electric fan, thermostatically controlled, ensures optimal oil temperature. This setup delivers 33,930 BTU/HR and supports over 30,000 GVW. The package includes all fittings, clamps, hoses, hardware, and a DIY galvanized bracket kit for quick, clean installation. The pre-wired loomed harness with fuse and relay features OEM-style sealed connectors for a factory-like finish and protection against the elements.

        $220.78

        Original: $735.95

        -70%
        BD Diesel Xtrude Transmission Oil Cooler Ford F150 / F250 / F350 (94-97) 5/16" Line w/ Fan - 1030606-5/16—

        $735.95

        $220.78
