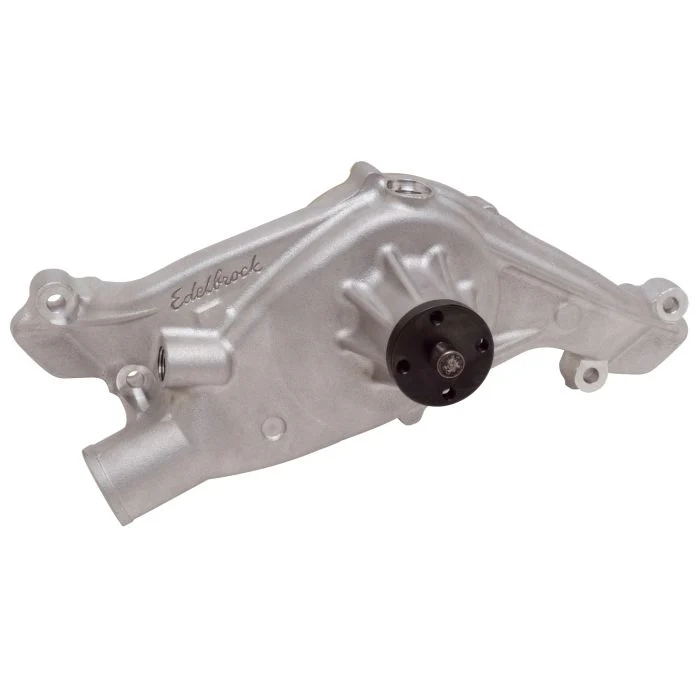

Edelbrock Water Pump Big-Block Chevy W 348/409 (1958-1965) Satin Finish 8858
- Application Application Specific
- Thermostat And Housing Included No
- Mounting Hole Quantity 4
- Housing Material Aluminum
- Impeller Material Powdered Metal
- Installation Warnings Yes
- Hub Hole Quantity 6
- Fan Clutch Included No
- Impeller Vane Quantity 6
- Includes Back Housing Yes
- Related Cooling Fan Components No
- Casting Number 8858
- Availability Note Available to Order
- Warranty 12 Months
- Hub Height 5.500 in
- Impeller Rotation Standard
- Outlet Quantity 1
- Pulley Included No
- Water Pump Drive Type V-Belt
Install Notes
-
Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump
