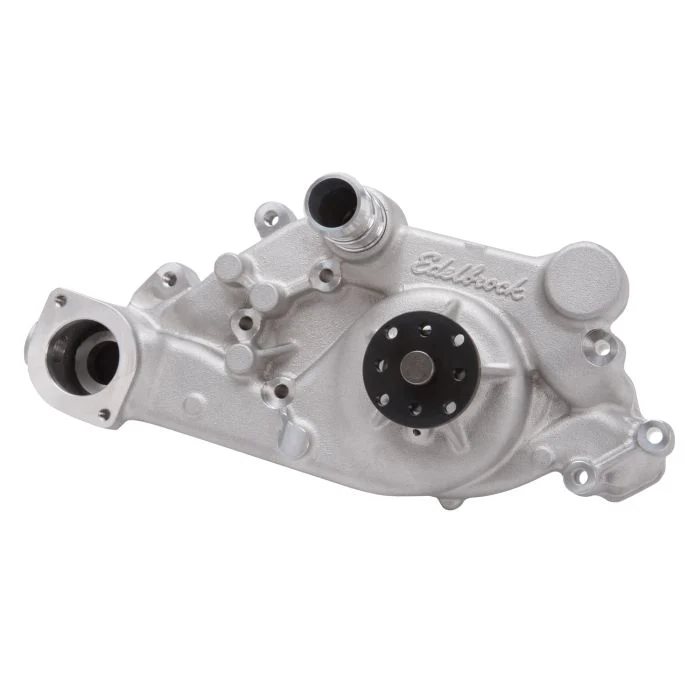

Edelbrock Water Pump Gen IV LS Engine (2005-2008) 8893

Product image 1

Edelbrock Water Pump Gen IV LS Engine (2005-2008) 8893

Edelbrock Water Pump Gen IV LS Engine (2005-2008) 8893

Edelbrock #8893 Water Pump Gen IV LS Engine 2005-08 Ideal To Prevent Overheating In Street Rods And Street Machines
Specs
  • Application: Application Specific
  • Thermostat And Housing Included: No
  • Mounting Hole Quantity: 6
  • Housing Material: Aluminum
  • Impeller Material: Powdered Metal
  • Installation Warnings: Yes
  • Hub Hole Quantity: 6
  • Fan Clutch Included: No
  • Impeller Vane Quantity: 6
  • Includes Back Housing: Yes
  • Related Cooling Fan Components: No
  • Casting Number: 8893
  • Availability Note: Available to Order
  • Warranty: 12 Months
  • Hub Height: 5.310 in
  • Impeller Rotation: Reverse
  • Outlet Quantity: 1
  • Pulley Included: No
  • Water Pump Drive Type: Serpentine Belt

Install Notes

  • Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; - The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump

Description and Information

Edelbrock #8893 Water Pump for 2005-08 GEN IV LS Engines (except Cadillac CTS-V) are ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
      $564.95
      Edelbrock Water Pump Gen IV LS Engine (2005-2008) 8893—
      $564.95

      Product Information

      Shipping & Returns

      Description

      Edelbrock #8893 Water Pump Gen IV LS Engine 2005-08 Ideal To Prevent Overheating In Street Rods And Street Machines
      Specs
      • Application: Application Specific
      • Thermostat And Housing Included: No
      • Mounting Hole Quantity: 6
      • Housing Material: Aluminum
      • Impeller Material: Powdered Metal
      • Installation Warnings: Yes
      • Hub Hole Quantity: 6
      • Fan Clutch Included: No
      • Impeller Vane Quantity: 6
      • Includes Back Housing: Yes
      • Related Cooling Fan Components: No
      • Casting Number: 8893
      • Availability Note: Available to Order
      • Warranty: 12 Months
      • Hub Height: 5.310 in
      • Impeller Rotation: Reverse
      • Outlet Quantity: 1
      • Pulley Included: No
      • Water Pump Drive Type: Serpentine Belt

      Install Notes

      • Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; - The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump

      Description and Information

      Edelbrock #8893 Water Pump for 2005-08 GEN IV LS Engines (except Cadillac CTS-V) are ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
