Fitment Information

• Toyota 4Runner 4WD / RWD (2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024)

Stages

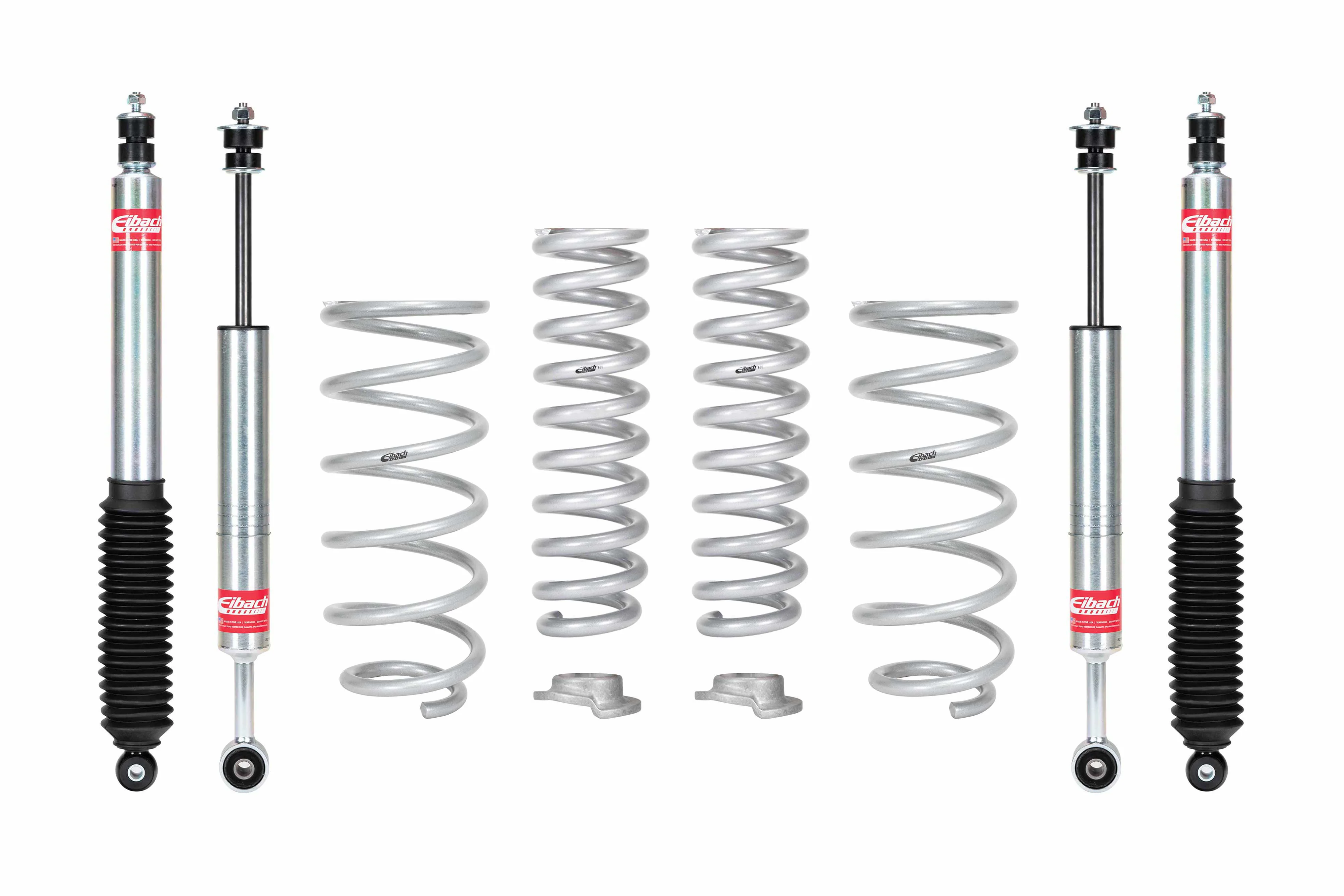

• Stage 1
  • Ride Height: +2.75" Front | +1.0" Rear
  • Includes 4 Pro-Truck Lift Springs and 4 Pro-Truck Sport Shocks. Listed front height is with Eibach spring on bottom clip of Eibach Sport shocks. Works with vehicles equipped with KDSS.
  • It combines our lift springs and sport shocks with height adjustable clips for increased tire clearance and improved on-and-off road performance.
• Stage 1 HD (Heavy Duty Springs)

  • Ride Height: +2.75" Front | +2.25" to 1.75" Rear
  • Set of 4 Shocks + 2 Springs + 2 HD Springs
  • Includes Pro-Truck Lift Springs and Pro-Truck Sport Shocks. Listed rear lift heights range from 0lbs(1st height listed) to 400lbs(2nd height listed) Only meant for vehicles with additional weight in the rear (200-400lbs) Listed front height is with Eibach spring on bottom clip of Eibach Sport shocks. Works with vehicles equipped with KDSS.
  • Matched system of lift springs and shocks designed for increased travel and performance

  • Designed for Rear Lift with Additional 200 - 400lb. of Weight

  • Monotube-High Pressure Floating Piston Design, Heavy Duty 46mm Piston, Nitro Coated Shaft.

  • Manufactured by Eibach using off-road race spring technology and OE quality standards

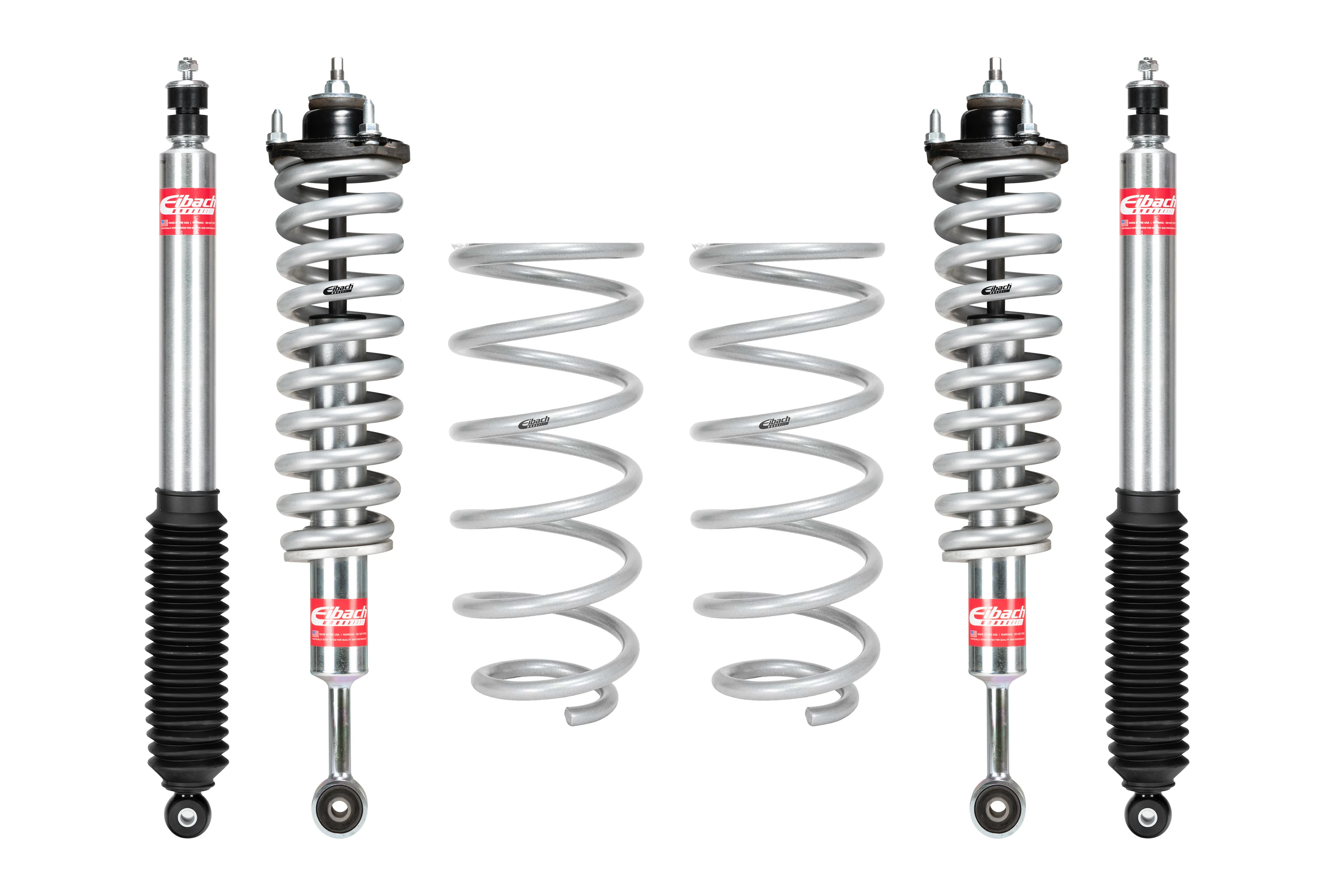

• Stage 1 Plus
  • Ride Height: +2.75" Front | +1.0" Rear
  • Set of 2 Assembled Front Shocks, Springs, Mounts + 2 Springs + 2 Rear Shocks
  • Front assembled Stage 1 with OE top mount, assembled with Eibach spring on bottom clip. (Level with OE rear) Works with vehicles equipped with KDSS.
  • It combines our lift springs and sport shocks with height adjustable clips for increased tire clearance and improved on-and-off road performance.

  • Matched system of lift springs, Shocks and Mounts assembled for increased travel and performance

  • Provides balanced ride quality, control and off-road capability

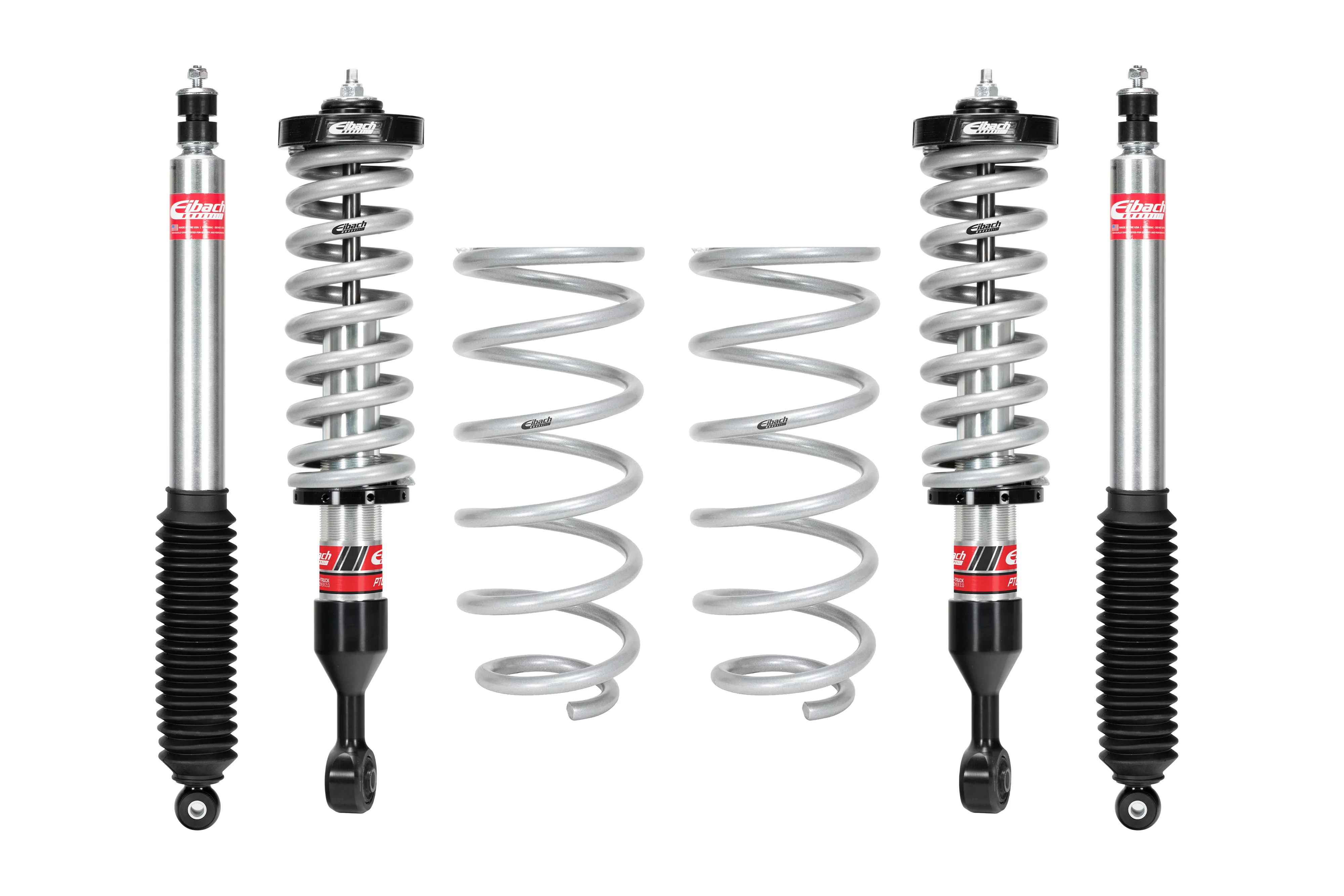

• Stage 2
  • Ride Height: +2.0-4.0" Front | +1 " Rear
  • Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs

  • Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.

  • Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube
  • Design with Nitrogen Filled Variable Force Valving.

  • Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested
  • Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring. Works with vehicles equipped with KDSS.

• Stage 2R

  • Ride Height: +2.0-4.0" Front | +1.0" Rear
  • Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks + Pro-Lift-Kit Springs

  • Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
  • Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring. Works with vehicles equipped with KDSS.
• Front Springs Only

  • Ride Height: +2.75" Front
  • Front Springs Only. Must be used with Eibach Pro-Truck Sport Front Shocks. Listed height is with Eibach spring on bottom clip of Eibach Sport shocks. Works with vehicles equipped with KDSS.
• Rear Springs Only
  • Ride Height: +1.0" Rear
  • Rear Springs Only. Must be used with Eibach Pro-Truck Sport Rear Shocks. Works with vehicles equipped with KDSS.
  • Springs are developed using championship winning off-road race technology providing maximum lift without compromising factory components or ride quality.

• Rear HD Springs Only
  • Ride Height: +2.25" to 1.75" Rear
  • Rear Springs Only. Must be used with Eibach Pro-Truck Sport Rear Shocks. Only meant for vehicles with additional weight in the rear (200-400lbs) Works with vehicles equipped with KDSS.
  • HD (Heavy-Duty) Spring Kit Designed for Control of Increased Payloads.

  • Engineered for Optimal Rear Lift Range with Increased Static Weight (See Notes).

  • Developed for use in Conjunction with Eibach Shocks.

  • Precision Engineered for Improved Off-Road Capability.

  • Made in U.S.A.
• Note:

• Stage kits are covered by a two-year warranty.

• Springs-only kits are covered by a five-year warranty.

Product Description

Built upon decades of offroad racing victory, the Eibach PRO-TRUCK-LIFT combines a series of Pro-Lift-Kit springs and Pro-Truck Sport shocks to create a perfectly tuned suspension system engineered for both, on and off-road performance. Each PRO-TRUCK-LIFT is designed and tested to deliver maximum ride height without compromising the integrity of factory bushings, ball joints and other components.

For vehicles with front coil-over-shock suspension, height adjustable spring perch grooves allow for fine tuning of the vehicles€™ ride height. As winches, armor and accessories are added, this system maintains proper ride height allowing for more clearance and full use of available shock travel.

With the same spring technology found in our ERO offroad race springs, the block resistant Pro-lift-kit springs can be taken to the limit mile after mile ensuring consistent performance and ride height. Matched with our heavy duty Pro-Truck Sport shock system, this combination is capable of handling anything in its path. Precision shock valving allows compliance over large obstacles and control through rough terrain while also improving on road comfort and performance.
