Dollar for dollar, the GR Lite is the best way to lift your vehicle! Please note, all GR Lite Coilovers are hand built and require a build time of approximately 3 weeks from the time of order.

Fitment Information

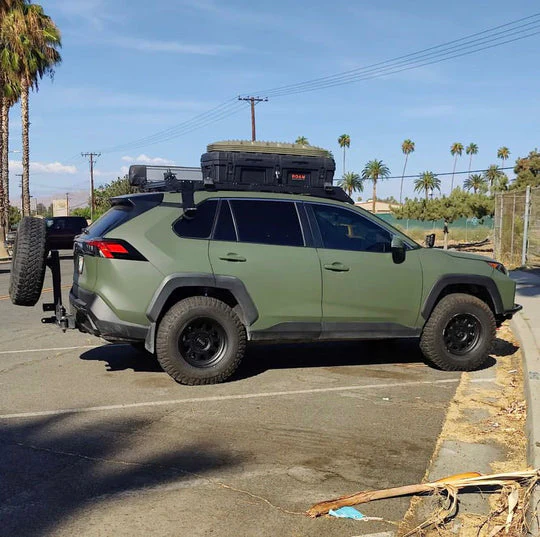

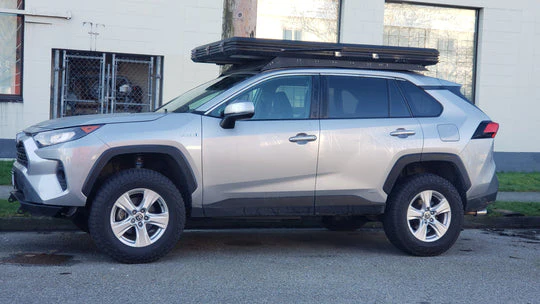

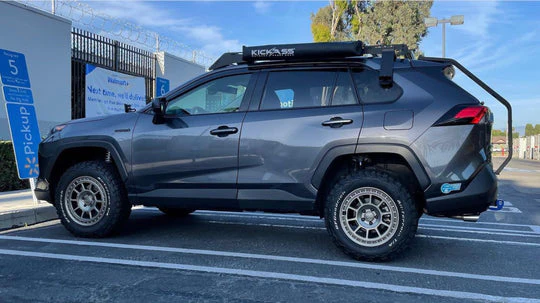

• Toyota RAV4 (2012, 2013, 2014, 2015, 2016, 2017)

Specs & Features

• Designed for Offroad
• Provides up to 3" lift over stock height
• Overload spring options available by request

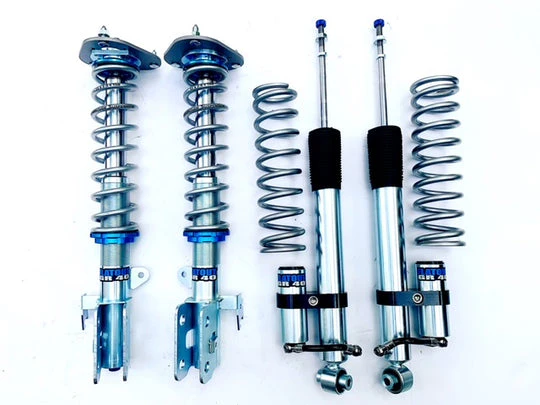

• 2 Front Inverted Assemblies

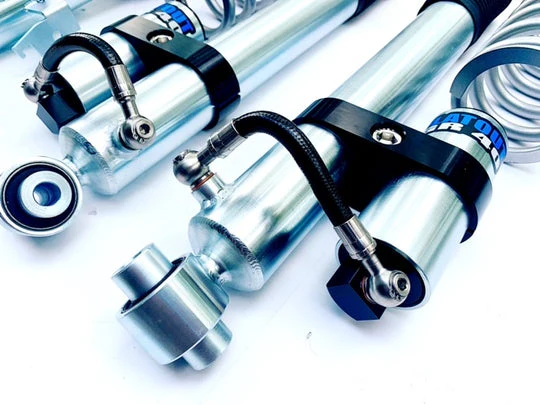

• 2 Rear Assemblies with reservoirs
• 40mm Piston
• Radial bearing on Front Assembly
• Magnitude Linear Rate Springs
• Highly Polished Electro-Plated Nickel Cartridge
• Rebuildable Inverted Shock
• CNC Machined High-flow Aluminum Piston
• Stainless Steel Shims
• Light Weight Synthetic Shock Oil
• Rebound Adjustable : 20 pts

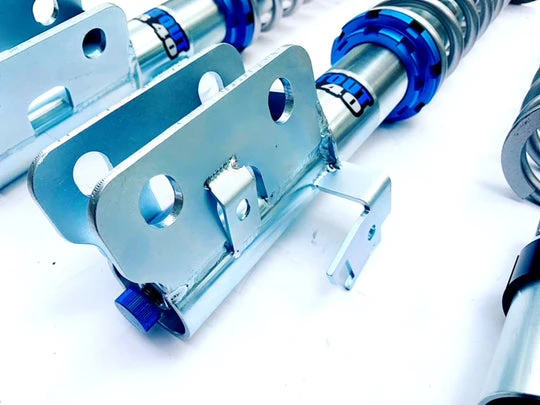

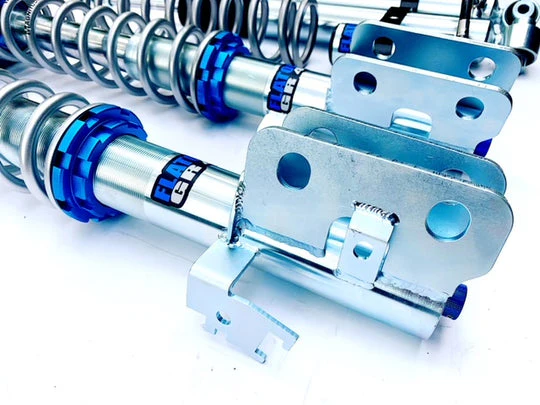

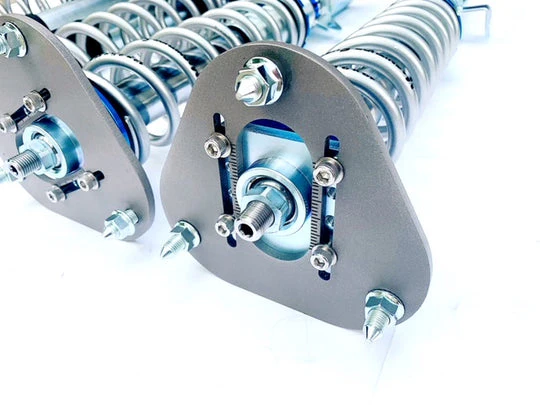

• Camber Adjustable front mounts
• Brackets for Sensor Lines on shock body
• Individual Parts Available
• Approx 3wks to hand assemble and ship

Product Description

Flatout Suspension presents the GR40, an entry-level rallycross suspension offering 1-way rebound adjustment. Engineered with an inverted shock and a robust 40mm piston, it boasts 20 points of rebound tuning for optimal performance. Equipped with Magnitude springs and a unified 1-piece design, the GR40 ensures durability and ease of installation, with electroplating across the body to deter corrosion. With 6-8 inches of adaptable travel, it caters to various applications, making it an ideal choice for novice rally enthusiasts seeking reliable performance and hassle-free maintenance.

Redline360 is an authorized Flatout dealer.  Flatout honors your warranty when purchasing your Flatout Coilovers from Redline360.
