Fitment Information:

• Honda Ridgeline AWD (2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025)

Note

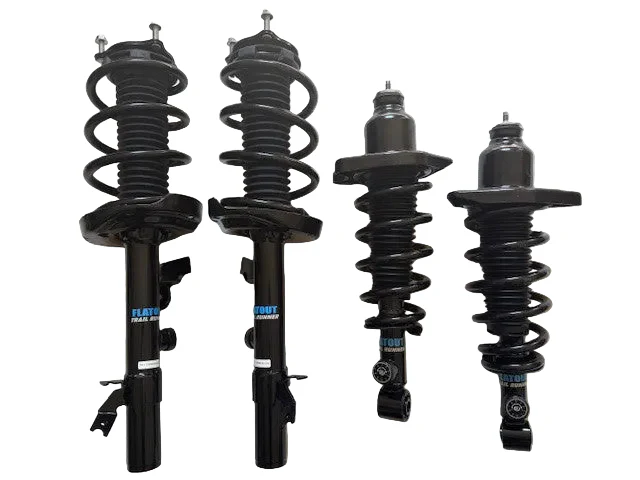

Image is only a representation of the coilovers. Your Flatout Trailrunner kit will be specific to vehicle listed in the title. If you have any questions about this kit, please contact us.

Specs and Features:

• Kit Configuration - The Unloaded version comes as bare adjustable shocks, while the Fully Assembled kit includes a complete, ready-to-install suspension assembly.
• Included Components:

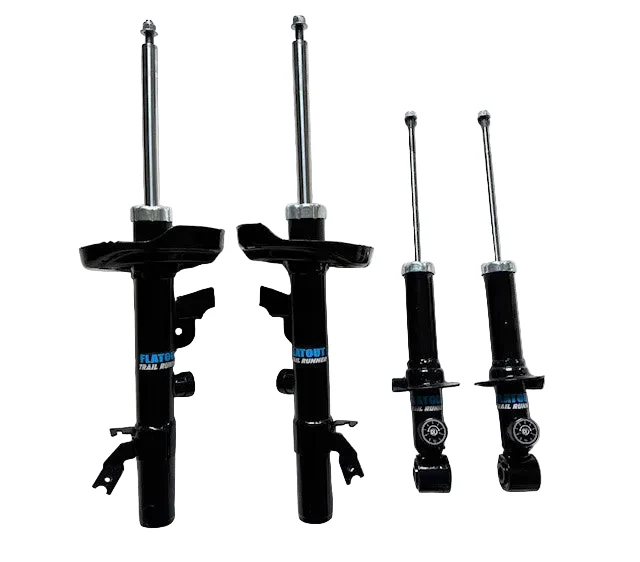

  • Trail Runner Unloaded kit provides shocks only
  • Trail Runner - Fully Assembled version includes shocks, springs, top mounts, bearings, and all necessary hardware.
  • 2006-2016

  • • 2x Front Strut Assemblies

    • 2x Rear Shock Assemblies

    • 1x Rear Subframe Drop Kit (1.5")

    • 2x Front Sway Bar Endlinks
  • 2017-2025
    • 2x Front Strut Assemblies

    • 2x Rear Shock Assemblies

    • 2x Front Sway Bar Endlinks
• OEM Parts Requirement - The Unloaded setup requires reuse of factory springs, mounts, and hardware, while the Fully Assembled kit uses entirely brand-new components.
• Installation Experience - The Unloaded version requires additional labor and a spring compressor for assembly, while the Fully Assembled kit offers a quick and straightforward bolt-on installation.
• Cost Efficiency - The Unloaded kit is a budget-friendly option by reusing existing parts, while the Fully Assembled version carries a higher upfront cost but saves on installation time.
• Performance & Lift - Both versions deliver the same 2-inch lift and adjustable damping performance, ensuring identical ride quality and capability.


Trail Runner Assembly Specs

•   Shock Stroke:
  • Front Assembly:
    • 2006–2016: 7 1/8"

    • 2017–2025: 6 7/8"
  • Rear Assembly: 7 1/4"
    • 2006–2016: 7 1/8"

    • 2017–2025: 7 1/4"
• Assembly Length
  • Front Assembly:
    • 2006–2016: 25"

    • 2017–2025: 24"
  • Rear Assembly:
    • 2006–2016: 21 1/2"

    • 2017–2025: 20"
• Shock Rod OD
  • Front Assembly: 22mm
  • Rear Assembly: 22mm
• Shock Body OD:
  • Front Assembly: 54mm
  • Rear Assembly: 54mm

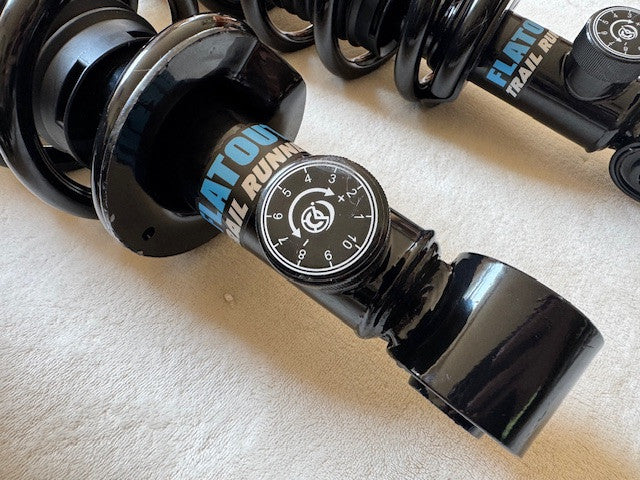

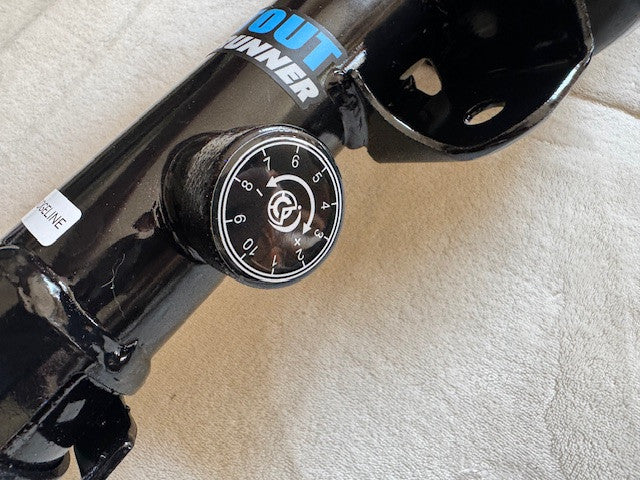

• Damper Knob:
  • Offroad: 1
  • OEM-Ride: 5
  • Sport: 10


Product description:

The Flatout Suspension TR Series Shocks are perfect for vehicle owners looking for a no-fuss, high-performance suspension upgrade. These shocks provide a 2-inch lift over OEM height, with enhanced suspension travel for improved handling on and off the road. The adjustable damping allows you to fine-tune your ride, ensuring maximum comfort and control in a variety of conditions.

Unlike other shock and spring combos, the TR Series offers an OEM-style look and feel, ensuring your ride remains sleek and factory-finished, while still delivering top-tier performance. These shocks are compatible with any spring designed for OEM-style shocks, including lift and overload springs, giving you the flexibility to further customize your setup.

With maintenance-free construction, the TR Series is the ideal solution for those who want a complete, hassle-free suspension upgrade. Whether you're heading off-road for an adventure or simply upgrading your daily driver, the Flatout TR Series Shocks are designed to handle it all - with comfort, control, and performance you can count on.

For those who want performance without overspending, the Flatout Trail Runner Unloaded Lift Kit is the smart upgrade. It delivers the same proven 2-inch lift, increased suspension travel, and adjustable damping performance as the fully assembled Trail Runner system-but with a more budget-conscious approach. By reusing your OEM springs, top mounts, and hardware, you get the full capability of a premium suspension setup while cutting down unnecessary costs. It’s the perfect solution if your factory components are still in good shape and you’re looking to maximize value without sacrificing results.

Designed for both daily driving and light off-road use, the Unloaded kit transforms your ride with improved ground clearance, better shock absorption, and more confident handling across rough roads and trails. Backed by Flatout Suspension’s reputation for durability and performance, this setup keeps things simple, reliable, and effective. If you’re after a practical lift upgrade that delivers real-world performance without the premium price tag, the Trail Runner Unloaded is an easy win.
