Fitment Information

• Mercedes AMG G63 / G550 W463A (2019, 2020, 2021, 2022, 2023, 2024, 2025)


Specs & Features

• Bolt Pattern: 5/130
• Center Bore: 84
• Bolt or Stud: Bolt
• Thread Type: 14x1.5
• Sold as a pair

• Available in multiple styles
• Series Options:
  • DR Series – 3mm to 23mm widths, requires longer wheel bolts (ordered separately)

  • DRA Series – 20mm to 45mm widths, bolts directly to hub with included special wheel bolts, provides new threaded holes for existing wheel bolts


Product Description

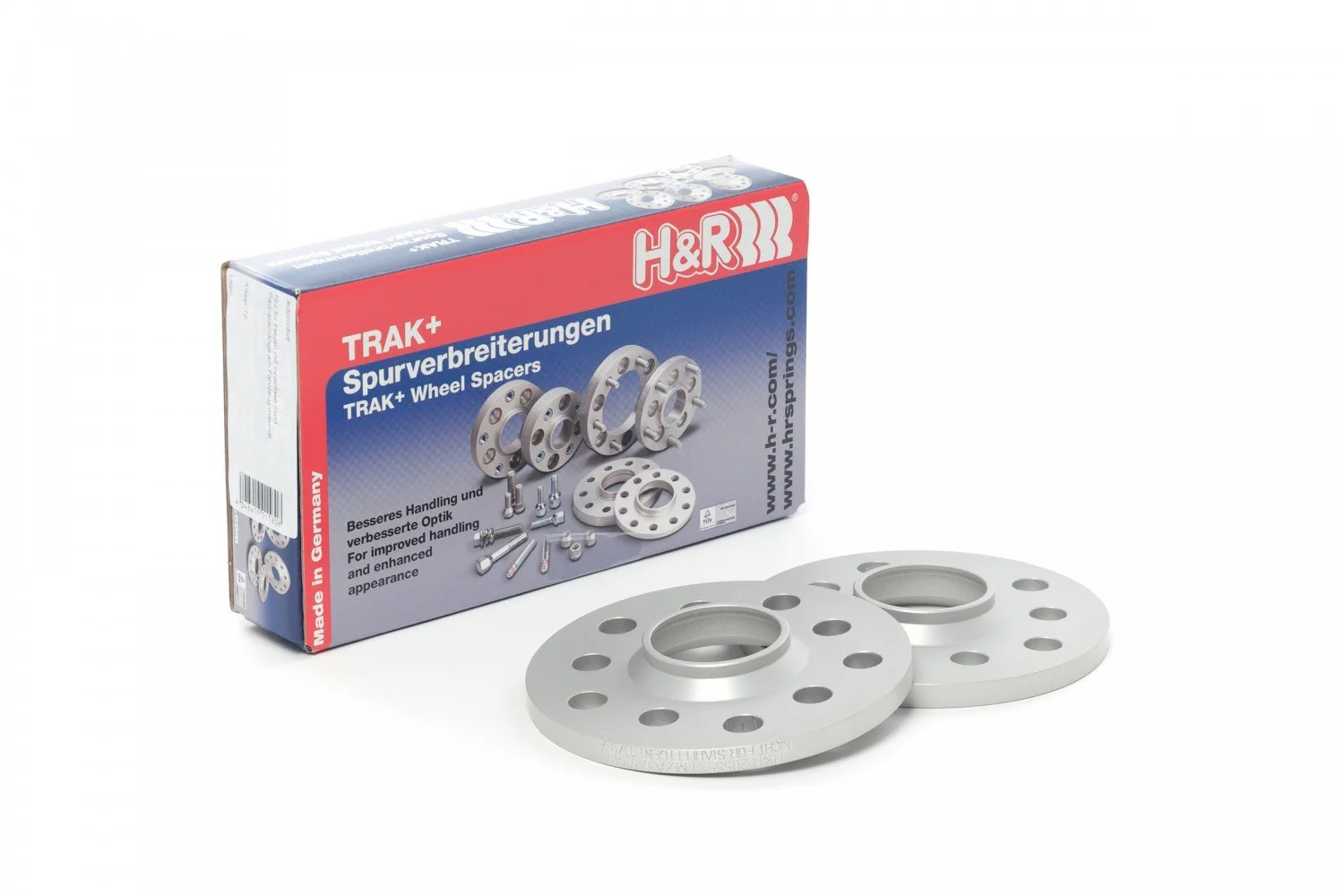

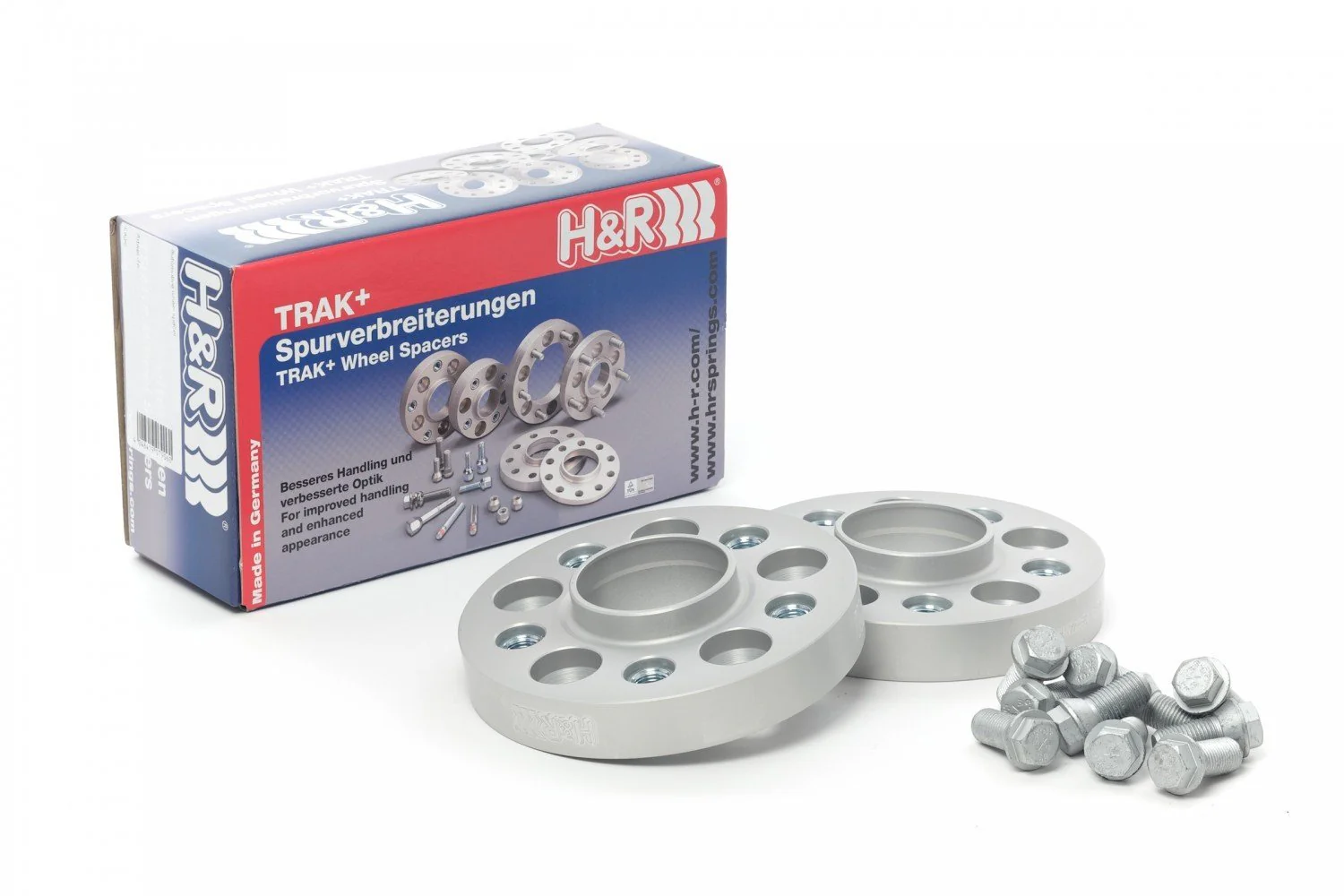

Wider is Better! H&R TRAK+ Wheel Spacers move your wheels and tires outwards so they are more flush with the fender‚ instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+ you can fill the gap in your fenders and GO WIDE!

TRAK+ Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+ Wheel Spacers are hubcentric and feature a full contact hub‚ just like the factory hub‚ for even load force distribution and lateral support.



Important

10mm / 10mm Black / 15mm / 15mm Black / 20mm / 20mm / 23mm / 23mm Black DR Wheel Spacer:

• • All DR-Systems require longer wheel bolts. These must be ordered separately. When ordering wheel bolts, please follow these guidelines:

    a) If possible, name the brand of wheel.

    b) New bolts must be longer than the original bolts by the width of the wheel spacer used.

    c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06

    d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length

    e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc..) Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm- i.e., Rear Axle Mercedes.)

31mm / 31mm Black / 35mm / 35mm Black DRA Wheel Spacer:

• • If the depth of the wheel spacer is smaller than the length of the standard studs, the wheels used must allow for small cavities in the mounting pad of the wheel. If using wheels without cavities, the standard studs should be shortened so that they do not extend beyond the height of the spacer.

31mm / 31mm Black / 35mm / 35mm Black / 40mm / 40mm Black / 45mm / 45mm Black / 50mm / 50mm Black DRA Wheel Spacer:

• •  This spacer requires the use of a wheel bolt with a fully threaded shank. If your OE wheel bolt is not threaded the entire length of the shank you will need to purchase wheel bolt part number 1454002 for proper installation. You should achieve at least 7.5 turns of thread engagement.
