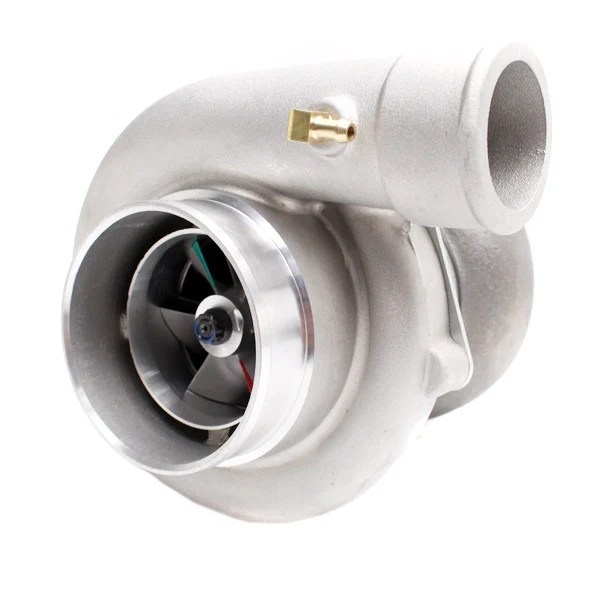

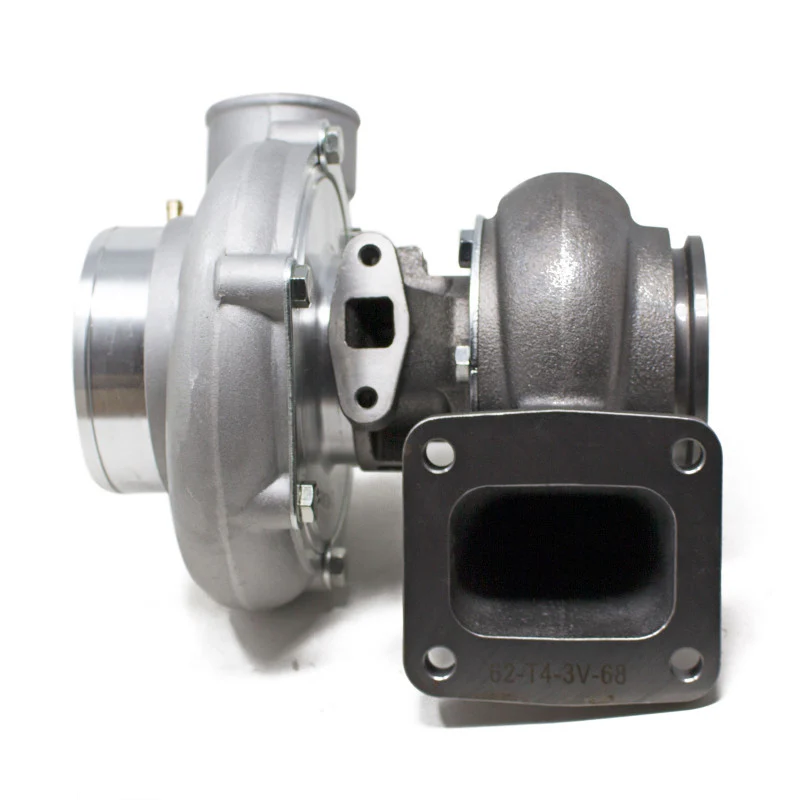

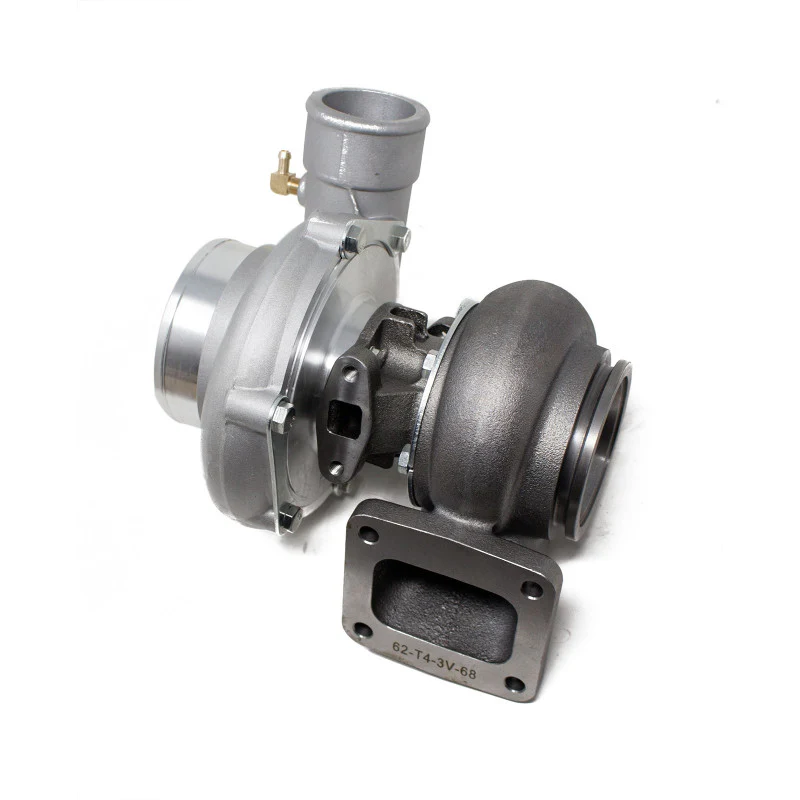

REV9 TX-66-62 Turbocharger T3 / T4 Flange 3 Inch V-Band Exhaust .65AR / .68AR / .70AR / .84AR Cast Iron

REV9 TX-66-62 Turbocharger T3 / T4 Flange 3 Inch V-Band Exhaust .65AR / .68AR / .70AR / .84AR Cast Iron

Fitment Information

  • Universal

Note

  • This product is not currently covered by a California Air Resources Board (CARB) Executive Order (EO) and is not legal for use on emissions-controlled vehicles in the state of California.

Specs & Features

    • Turbine Inlet: T3 / T4
    • Compressor Material: Standard cast compressor wheel
    • Compressor Inlet: 4.00"
    • Compressor Outlet: 2.50"
    • Compressor Cover: Anti Surged 70 Series Cover
    • Compressor Wheel Diameter: 65mm /  91mm
    • Turbine Wheel Diameter: 62mm / 70mm
    • Exhaust Trim: .65 AR / .68AR / .70 AR / .84 AR
    • Turbine Flange Type: T3 or T4 Flange or Twin Scroll (Twin Scroll Design for Faster Spooling)
    • Downpipe Flange Type: 3.00" V-Band
    • Cooling Type: Oil Cooled Only
    • Horsepower Rating: 300-600 HP+
    • Recommended Oil Restrictor Size: 0.065"

    In the Box

    • Rev9 TX-66-62 Turbocharger
    • Pre-Installed Turbine and Compressor Housing
    • Installation Hardware and Accessories

    Product Description

    The Rev9 TX-66-62 Turbocharger Series is engineered for enthusiasts building high-horsepower turbo setups that demand serious airflow capability without sacrificing boost response. Designed around larger compressor and turbine wheel combinations, these turbochargers are built to move significantly more air than smaller-frame street turbos while still maintaining usable spool characteristics for aggressive street driving and competition use. The T3 .65 A/R variants offer quicker boost response and strong mid-range acceleration, making them ideal for responsive street and drift builds, while the larger T4 and T4 twin-scroll configurations provide the airflow capacity and exhaust efficiency needed for higher horsepower drag, roll racing, and track-focused setups. Twin-scroll divided housings help maximize exhaust pulse energy for improved spool recovery, smoother power delivery, and stronger high-RPM performance under heavy load.

    Built for fabricated turbo systems and custom performance applications, the Rev9 TX Series continues to gain popularity among enthusiasts who want dependable turbo performance without spending exotic-car money on a single turbocharger. The universal T3 and T4 flange compatibility allows these turbos to work with a wide variety of aftermarket manifolds across Honda, Nissan, Toyota, Subaru, Mitsubishi, BMW, and other custom turbo platforms. Combined with the free-flowing 3-inch V-band exhaust outlet, durable cast iron turbine housing construction, and race-inspired airflow design, the TX-66-62 turbos deliver the aggressive spool sound, hard-charging acceleration, and top-end power enthusiasts chase when building a turbo setup that feels just as wild as it looks under the hood.


          Select Turbine Inlet
          Select Exhaust Housing Spec
          From $88.20

          Original: $294.00

          -70%
          REV9 TX-66-62 Turbocharger T3 / T4 Flange 3 Inch V-Band Exhaust .65AR / .68AR / .70AR / .84AR Cast Iron

          $294.00

          $88.20
