Fitment Information

• BMW 316i / 318i / 320i / 323i / 325i / 328i / 330i / 335i / 335d Sedan E90, RWD and xDrive, non-M3 (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011)
• BMW 316i / 318i / 320i / 325i / 328i / 330i / 335i Touring E91, RWD and xDrive, non-M3 (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)
• BMW 318i / 320i / 323i / 325i / 328i / 330i / 335i / 335is Coupe E92, RWD and xDrive, non-M3 (2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013)
• BMW 318i / 320i / 323i / 325i / 328i / 330i / 335i / 335is Convertible E93, RWD and xDrive, non-M3 (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Fitment Note: Fits non-M3 E90, E91, E92, and E93 models across both RWD and xDrive AWD configurations. Does not fit the M3, which uses a different front and rear suspension and sway bar mounting configuration.  US market E90 sedan production began in 2006. If you have a US-spec 2004 or 2005 3 Series, your car is on the E46 platform and this kit does not fit.

Contents

• Kit Contains:



  BBF43, BBR44 and KLC154 - essential to 'Activate more grip'

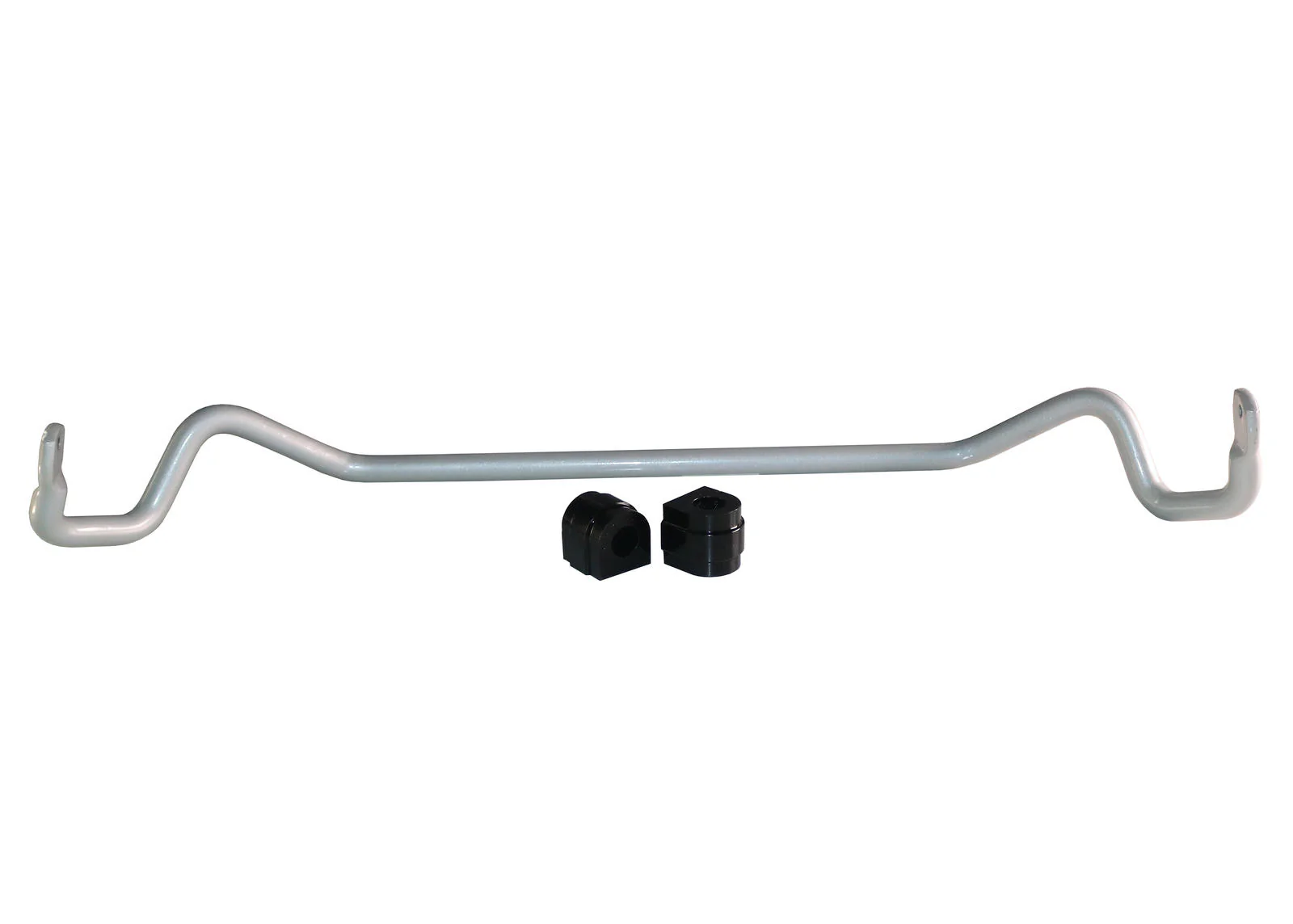

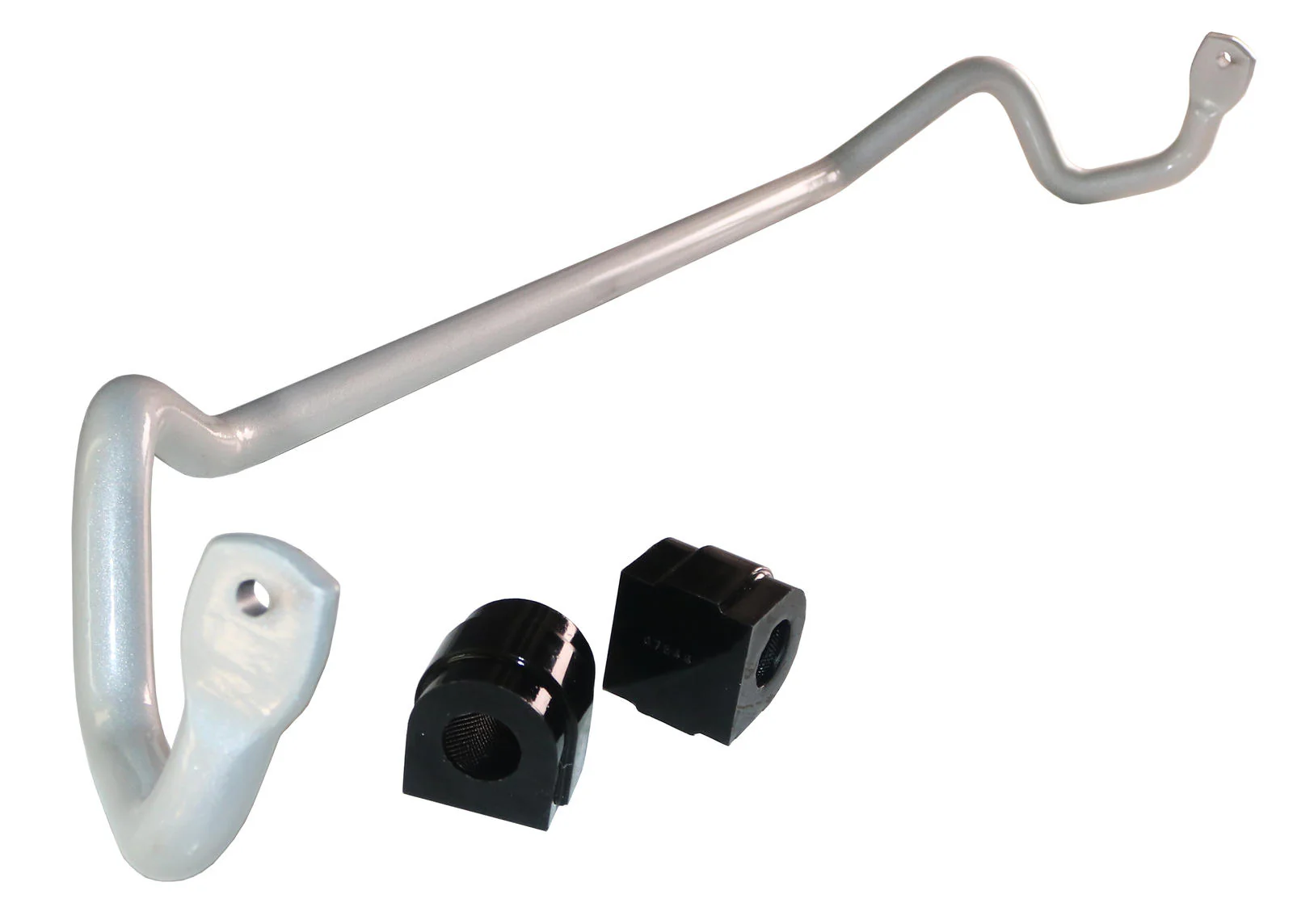

  • Front Sway bar - 27mm non adjustable
  • Rear Sway bar - 20mm non adjustable
  • Front Sway bar - link kit

  Upgrading the sway bars on your vehicle will;

  • Minimizing excess body roll
  • Dramatically improving handling performance
  • Tyre life
  • Steering response
  • Braking stability and response
  • No compromise to ride quality, NVH or comfort of the vehicle

  We recommend fitting this kit as a complete handling upgrade.

Specs & Features



• The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
• Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
• Internal grease reservoirs provide continual self-lubrication for optimum friction management.
• Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Sway bars are principally designed to reduce body roll or sway while cornering.
  Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
• Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
• DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
• By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
• Manufactured from high quality alloy and include heavy duty steel ball joints ensuring maximum strength and durability.
• Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
• Heavy duty ball joint ensures optimum durability & steering predictability.
  This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
• This kit includes the 27mm front sway bar (BBF43), the 20mm rear sway bar (BBR44), and the front adjustable endlink kit (KLC154).
• Rear endlinks are not included in this kit.
• Buyers completing the full front and rear sway bar installation should source rear endlinks separately.
• Both the front and rear bars are fixed position and non-adjustable.
• The handling balance is set by the bar diameters and cannot be tuned by moving the endlink mounting point.
• Buyers who want adjustable position sway bars should contact us for alternative Whiteline sway bar options.
• Synthetic elastomer bushings with knurled ID for grease retention are included along with extreme pressure grease and a detailed installation guide.
