Fitment Information

• Universal Fit

Specifications

20-0062 - 4-Port Manifold, Universal

• The universal kit includes the following black anodized fittings:
  • 4-Port Manifold

  • 8AN ORB Plug

  • 8AN ORB to 8AN Male

  • 8AN ORB to 10AN Male

  • 6AN ORB to 6AN Male (x2)

20-0063 -  4-Port Manifold, Bosch 044 Pumps

• This allows flexibility when plumbing a fuel system using multiple Bosch pumps.
• Note: this kit eliminates the Bosch check valves. The pumps can NOT be staged.

  • 4-Port Manifold

  • 8AN ORB Plug

  • 8AN ORB to 8AN Male

  • 8AN ORB to 10AN Male

  • 6AN ORB to M12x1.5 Male (x2)

  • M12 Crush Washer (x2)

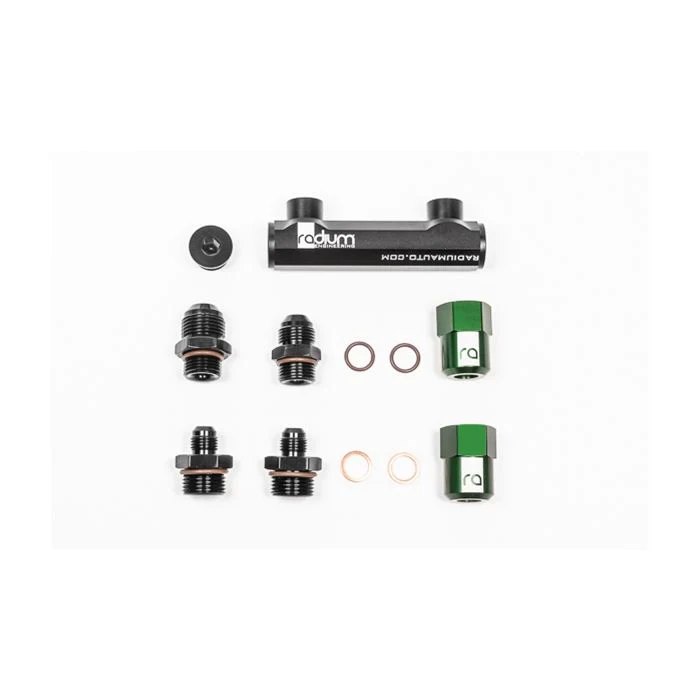

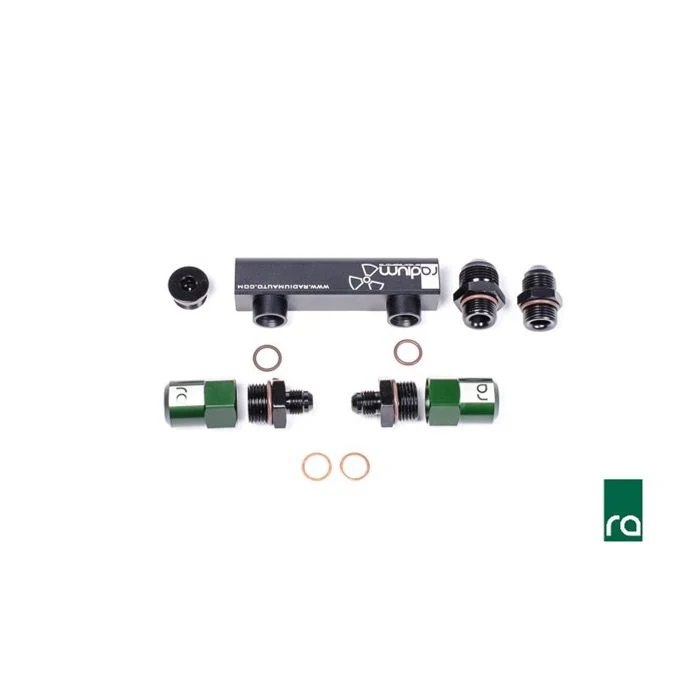

20-0463 - 4-Port Manifold, Bosch 044 Pumps, Reuses Check Valves

• This allows flexibility when plumbing a fuel system using multiple Bosch pumps.
• Note: this kit permits the Bosch check valves. The pumps can be staged.
  • 4-Port Manifold

  • 8AN ORB Plug

  • 8AN ORB to 8AN Male

  • 8AN ORB to 10AN Male

  • 10AN ORB to 6AN Male (x2)

  • Bosch 044 Check Valve Adapter (x2)

  • M12 Crush Washer (x2)

  • 6AN ORB FKM O-ring (x2)

Product Description

This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. The 6AN ORB ports are 2.85" apart (center to center). Fully anodized and resistance to all fuel types.
