Fitment Information

• Subaru WRX STi USDM (2004-2006)

• Subaru Forester XT (2004-2005)

• Subaru Legacy GT (2005-2006)

• Subaru Legacy GT JDM (2004-2006)

• Subaru Outback XT (2005-2006)
• Do NOT purchase "WRX Fitment" injectors.
• Below are some of the many fuel injectors that are a direct fit:
  • Injector Dynamics ID1050-XDS-34-14-14

  • Injector Dynamics ID1300-XDS-34-14-14

  • Injector Dynamics ID1700-XDS-34-14-14

  • Injector Dynamics ID2600-XDS-34-14-14

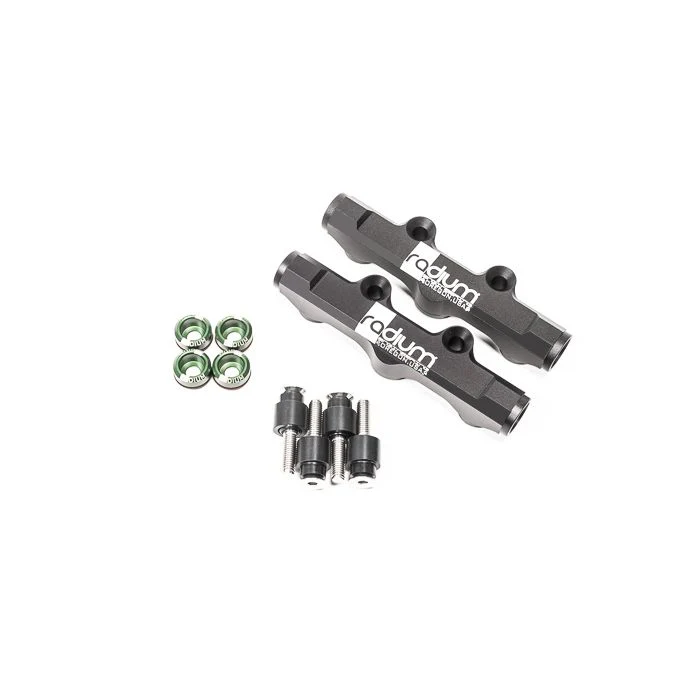

What's Included?

• Black Anodized Laser Etched Aluminum Fuel Rails (x2)

• Green Anodized and Laser Etched 22mm Injector Seats (x4)

• Thermal Insulating Press-In Spacers, 15mm (x4)

• Stainless Steel M8x1.25 Mounting Bolts (x4)


Product Description

Each fuel rail features three 8AN ORB threaded ports (6 total). Press-fit spacers are included to thermally insulate intake manifold heat transfer.

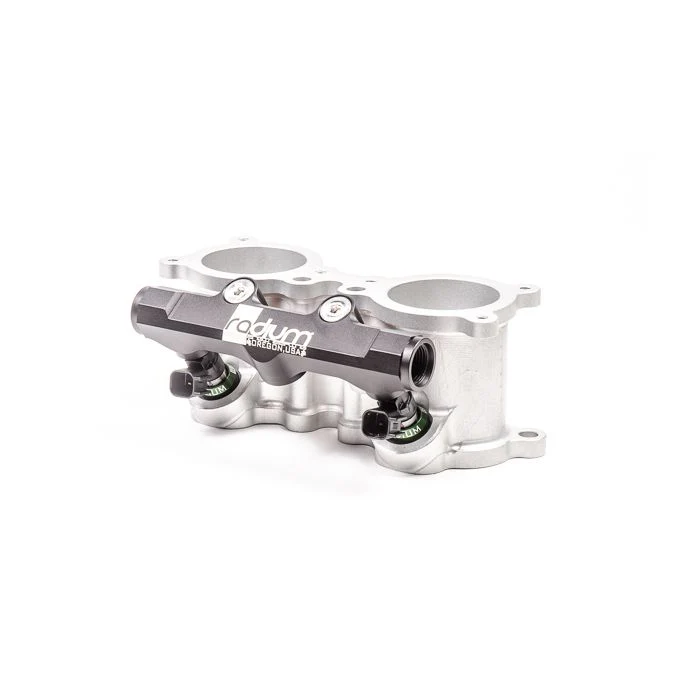

The "conversion" fuel rails convert the OEM side feed fuel injector setup to top feed allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. The fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85.

The four billet injector seats are anodized and laser etched and provide a sealed receptacle for top feed fuel injectors. The seats are designed for injectors with 14mm lower O-rings.
